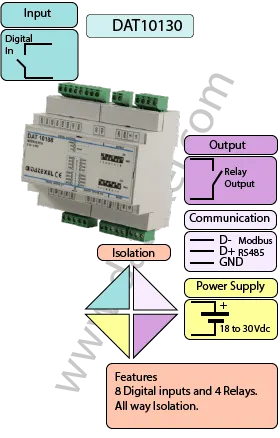

8 Digital inputs and 4 Relays on Modbus RTU DAT10130

General Description

The Modbus RTU DAT10130 is an 8 Digital input and 4 relay output Modbus RTU device. The 8 digital inputs are on state between 10 and 30 V and off set below 3 V. The sample time is 5 ms. The 4 relays have 2 single pole double throw and 2 single pole single throw. 3 way Isolation is provided between the input relays and power supply.

Modbus RTU, Modbus ASCII.
8 Digital inputs.
2 SPDT Relays.
2 SPST Relays.
Power Supply Voltage 10-30Vdc
Reverse polarity protection 60Vdc
Between 30 and 180 mA
PC Programmable.
DIP Switch
Between Input/Comms/Power Supply 2000Vac.
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
Material self-extinguishing
Dimensions W x H x T
4.1/4" x 4 1/2" x 2 1/4"
106 x 112x x 57 mm
Weight 7 oz 200 g
Operating Temperature 14°F +140°F -10°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Digital 8 Channels 0-3 V Off 10-30 V on
Digital 4 Relays 2 SPDT, 2 SPST.
RS485: Modbus RTU, Modbus ASCII.
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA to 45 mA.
Temperature rating: Operative Temperature 14°F +140°F, - 10°C +60°C Storage Temperature - 40°F +185°F, - 40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 4 1/4X 4 1/2 X 2 1/4 inch, 106 x 112 x 57mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Input, Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable, DIP Switch.

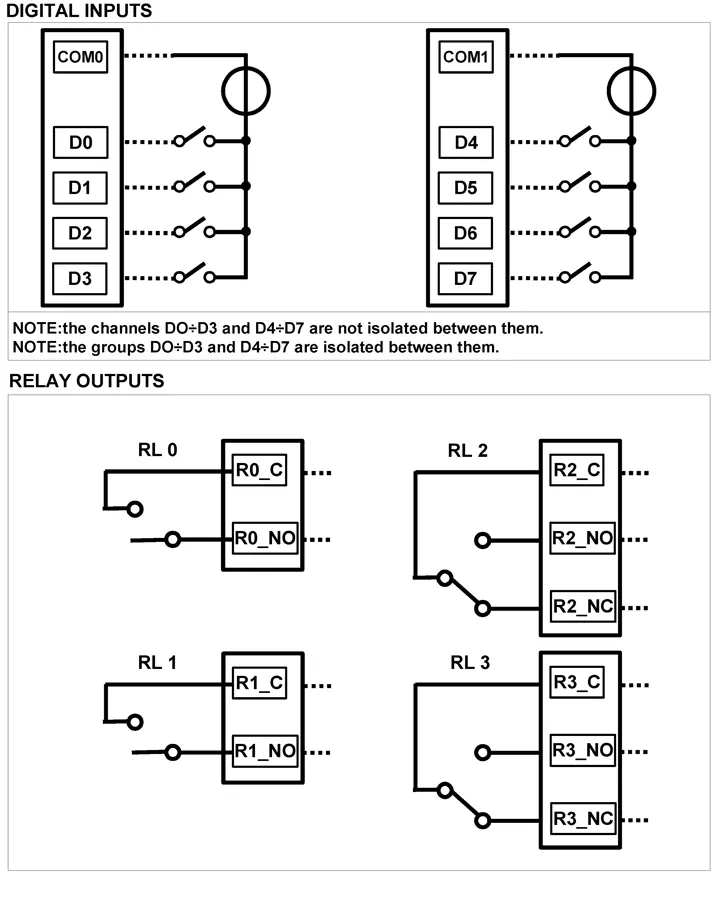

Digital Input 0 Commom COM0 Output D0
Digital Input 1 Commom COM0 Input D1
Digital Input 2 Commom COM0 Input D2
Digital Input 3 Commom COM0 Input D3
Digital Input 4 Commom COM0 Input D4
Digital Input 5 Commom COM0 Input D5
Digital Input 6 Commom COM0 Input D6
Digital Input 7 Commom COM0 Input D7
Relay Output 0 Commom R0_C, Normally open R0_NO
Relay Output 1 Commom R1_C, Normally open R1_NO
Relay Output 2 Commom R2_C, Normally open R2_NO, Normally closed R2_NC
Relay Output 3 Commom R3_C, Normally open R3_NO, Normally closed R3_NC
Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND C
Init Pin D Init Gnd C

8 Digital inputs and 4 Relays on Modbus RTU DAT10130.


  • Modbus to Relay output.
Back to General Description
