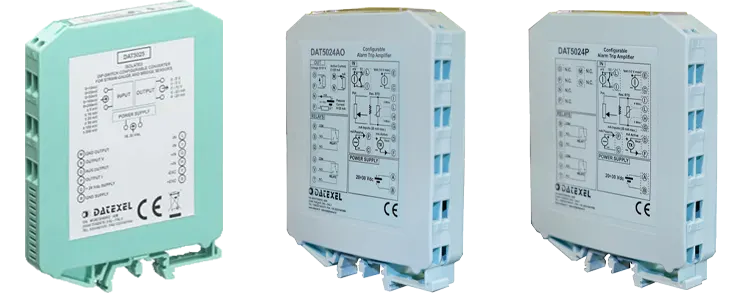

Complete list of DATEXEL DAT5000 signal Conditioners, Temperature Transmitters, Trip Amplifiers, Voltage Converters.

DAT1000 DAT200 DAT2000 DAT3000 DAT400 DAT4000 DAT500 DAT5000 DAT6000 DAT700 DAT7000 DAT8000 DAT9000 PRODAT



Bidirectional Signal Converter DAT5020

DIP Switch Programmable Bidirectional Signal Converter DAT5020.

Input

  • Voltage +/-5V, +/-10V, 0-10V, 0-1V, 0-100mV.
  • Current 0-20mA, 4-20mA.
  • Potentiometer 0-1K, 0-5K.

Output

  • Voltage +/-5V, +/-10V, +/-1V 0-10V, 0-2V, .
  • Current 0-20mA, 4-20mA.
Isolated Signal Converter DAT5021.

DIP Switch Programmable Isolated Signal Converter DAT5021.

input

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
Dual Channel Isolated Signal Converter DAT5022.

DIP Switch Programmable Dual Channel Isolated Signal Converter DAT5022.

Input

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
AC Current Converter DAT5023I AC A

DIP Switch Programmable AC Current Converter DAT5023I AC A.

Input

  • 0-5 A ac,
  • 0-10A ac.

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
AC Current Transducer DAT5023I AC B

DIP Switch Programmable AC Current Transducer DAT5023I AC B.

Input

  • 0-20 A ac,
  • 0-25 A ac,
  • 0-30A ac.

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
AC Current Converter DAT5023I AC C

DIP Switch Programmable AC Current Converter DAT5023I AC C.

Input

  • 0-40 A ac,
  • 0-50 A ac,
  • 0-60A ac.

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
DC Current Converter DAT5023IDCA

DIP Switch Programmable DC Current Converter DAT5023I DC A.

Input

  • 0-5 A dc,
  • 0-10A dc.

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
DC Current Converter DAT5023IDCB

DIP Switch Programmable DC Current Converter DAT5023I DC B.

Input

  • 0-20 A dc,
  • 0-25 A dc,
  • 0-30A dc.

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
DC Current Transducer DAT5023I DC C

DIP Switch Programmable DC Current Transducer DAT5023I DC C.

Input

  • 0-40 A dc,
  • 0-50 A dc,
  • 0-60A dc.

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
AC Voltage Transducer

DIP Switch Programmable AC Voltage Transducer DAT5023V AC.

Input

  • 0-36 Volts AC
  • 0-80 Volts AC
  • 0-170 Volts AC
  • 0-370 Volts AC
  • 0-550 Volts AC

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V
DC Voltage Transmitter

DIP Switch Programmable DC Voltage Transmitter DAT5023V DC.

Input

  • 0-36 Volts DC
  • 0-80 Volts DC
  • 0-170 Volts DC
  • 0-370 Volts DC
  • 0-550 Volts DC

Output

  • Current 0-20mA, 4-20mA.
  • Voltage 0-10V, 2-10V, 0-5V, 1-5V.
DAT5024 RTD TRIP AMP

RTD Trip Amplifier DAT5024 1 RELAY.

input

  • RTD Pt100, Pt1000, Ni100, Ni1000.
  • Resistance.

Output

  • 1 Relay
DAT5024 RTD TRIP AMP

RTD Trip Amplifier DAT5024 2 RELAY.

input

  • RTD Pt100, Pt1000, Ni100, Ni1000.
  • Resistance.

Output

  • 2 Relay
DAT5024 RTD TRIP AMP

Thermocouple Trip Amp DAT5024T1.

input

  • Thermocouple J, K, S, R, B, E, T, N.
  • mV.

Output

  • 1 Relay
DAT5024 RTD TRIP AMP

Thermocouple and mV Trip Amplifier DAT5024T2 2 RELAY.

input

  • Thermocouple J, K, S, R, B, E, T, N.
  • mV.

Output

  • 2 Relay
DAT5024 VOLTS AND CURRENT TRIP AMP

Current and Voltage Trip Amplifier DAT5024V1 1 RELAY.

input

  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V.

Output

  • 1 Relay
DAT5024 VOLTS AND CURRENT TRIP AMP

Current and Voltage Trip Amplifier DAT5024V2 2 RELAY.

input

  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V.

Output

  • 2 Relay
mA Limit Alarm DAT5024E1

mA Limit Alarm DAT5024E1.

input

  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V, 1-5V, 2-10V.

Output

  • 1 Relay
Process Limit Alarm DAT5024E2

Process Limit Alarm DAT5024E2.

input

  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V, 1-5V, 2-10V.

Output

  • 2 Relay
RTD Trip Amplifier

RTD Trip Amplifier DAT5024L1.

input

  • Thermocouple J, K, S, R, B, E, T, N.
  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V.
  • RTD Pt100, Pt1000, Ni100, Ni1000.
  • mV.
  • Potentiometer.
  • Resistance.

Output

  • 1 Relay
Thermocouple Trip Amplifier

Thermocouple Trip Amplifier, DAT5024L2.

input

  • Thermocouple J, K, S, R, B, E, T, N.
  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V.
  • RTD Pt100, Pt1000, Ni100, Ni1000.
  • mV.
  • Potentiometer.
  • Resistance.

Output

  • 2 Relay
mA Trip Amplifier

mA Trip Amplifier

input

  • Thermocouple J, K, S, R, B, E, T, N.
  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V.
  • RTD Pt100, Pt1000, Ni100, Ni1000.
  • mV.
  • Potentiometer.
  • Resistance.

Output

  • 1 Relay
Voltage Trip Amplifier DAT5024D2.

Voltage Trip Amplifier DAT5024D-2.

input

  • Thermocouple J, K, S, R, B, E, T, N.
  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V.
  • RTD Pt100, Pt1000, Ni100, Ni1000.
  • mV.
  • Potentiometer.
  • Resistance.

Output

  • 2 Relay
Strain Gauge Converter DAT5025.

Strain Gauge Converter DAT5025.

Input From 0-10mV to 0-200mV.

Output 4-20mA, 0-20mA.

Signal Conditioner with Trip Amplifier DAT5028

Signal Conditioner with Trip Amplifier DAT5028.

input

  • Thermocouple J, K, S, R, B, E, T, N.
  • Current 0-20mA, 4-20mA.
  • Voltage 0-1V, 0-10V.
  • RTD Pt100, Pt1000, Ni100, Ni1000.
  • mV.
  • Potentiometer.
  • Resistance.

Output

  • 4 Relay
  • Voltage 0-10Vdc, 0-5Vdc or Current 4-20mA, 0-20mA Both Active and Passive.
Intrinsic Safety Barrier loop Repeater 4-20mA DAT5030IS A.

Intrinsic Safety Barrier loop Repeater 4-20mA DAT5030IS A.

Input

  • 0-20 mA
  • 4-20mA.

Output

  • 4-20mA
  • 0-20mA
  • 0-10V
  • 2-10V
Hart Intrinsic Safety Barrier loop Repeater 4-20mA DAT5030IS A

Hart Intrinsic Safety Barrier loop Repeater 4-20mA DAT5030IS A

Input

  • 0-20 mA
  • 4-20mA.

Output

  • 4-20mA
  • 0-20mA
  • 0-10V
  • 2-10V
Dual Channel Hazardous area current loop repeater DAT5023ISB

Dual Channel Hazardous area current loop repeater DAT5023ISB

Input

  • 0-20 mA
  • 4-20mA.

Output

  • 4-20mA
  • 0-20mA
  • 0-10V
  • 2-10V
Hart Dual Channel Hazardous area current repeater DAT5023ISBH

Hart Dual Channel Hazardous area current repeater DAT5023ISBH

Input

  • 0-20 mA
  • 4-20mA.

Output

  • 4-20mA
  • 0-20mA
  • 0-10V
  • 2-10V
