  • Dual Channel Hazardous Area Current loop Repeater.
  • DAT5030IS B FEATURES

    • Dual Intrinsic Safety Barrier.
    • Protection mode II (1) G D [Ex ia] IIC-[Ex iaD]
    • Input mA, and Volts.
    • Output 4-20mA and 0-10V
    • Dual Current Loop Repeater.
    • DIP Switch Configurable.
    • DIN Rail Mounted.

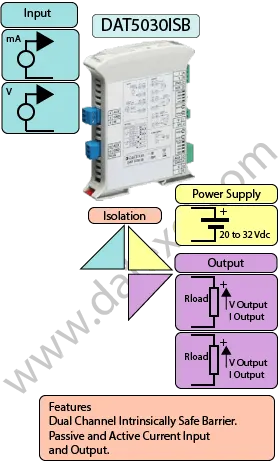

Dual Channel Hazardous area current loop repeater DAT5030ISB

General Description

The Dual Channel intrinsically safe DAT5030ISB is a DIN Rail mount current loop repeater. The input can be either 4-20mA or 0-20mA and the output can 4-20mA, 0-20mA, 0-10V or 2-10V. The input and output is selectable with DIP Switches. The Current input and output can be Active or Passive meaning the excitation voltage can be supplied by the field equipment or the loop can be powered be the DAT5030ISB.

The DAT5030ISB is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.

The DAT5030ISB also provides an isolation of 2000Vac between the input and output signal, and an isolation of 1500Vac between the power supply and the output signal.

This eliminates the effects of any ground loops and allows the use of the transmitter in heavy environmental conditions found in industrial applications. The DAT5030ISB is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

The DAT5030ISB is housed in a plastic enclosure of 22.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
2 X Current 4-20mA, 0-20mA.
OUTPUT
2 X Current 4-20mA, 0-20mA.
2 X Voltage 0-10V, 0-5V, 2-10V, 1-5V.
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
80 to 120 mA
CONFIGURATION
DIP Switch Configurable.
ISOLATION
Between Input/Output/Power Supply 2000Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
3 1/2" x 4 1/2 " x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: 2 X 4-20mA, 0-20mA..
Output: 2 X Voltage 0-10V, 2-10V.
2 X Current 4-20mA, 0-20mA.
Power Supply: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable

Drawings

Input
Channel 1
mA Passive Terminals + 4 and - 6
mA Active Terminals + 6 and - 5
Channel 2
mA Passive Terminals + 14 and - 16
mA Active Terminals + 16 and - 15
Output
Channel 1
mA Active Terminals + D and - A
mA Passive Terminals + A and - C
Voltage Terminals + B and - C
Channel 2
mA Active Terminals + O and - R
mA Passive Terminals + R and - P
Voltage Terminals + Q and - P
Power supply Positive +V J Negative -V I

Hazardous Area Repeater wiring Diagram.


Applications

  • Dual Loop Repeater IS Safety barrier.
  • ATEX Dual Safety barrier.
