  • Dual Channel Isolated Voltage converter and Current converter DAT4532D.
  • DAT4532D FEATURES

    • UL, CSA, CE.
    • Dual Channel Current converter
    • Dual Channel Voltage converter
    • PC and DIP Switch Programmable
    • 5 way Isolation
    • DIN Rail Mounted
    • Voltage Input range 0-10V
    • Current input Range 0-20mA

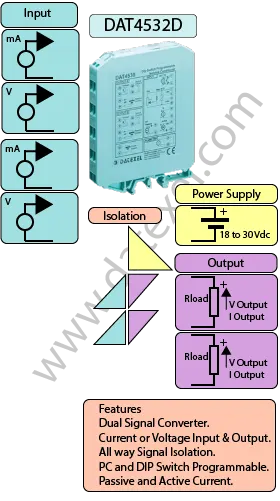

  • DAT4531D Dual Channel Voltage and Current converter Block Diagram

Dual Voltage converter and Current converter DAT4532D.

General Description

The Dual Channel Voltage converter and Dual Channel Current converter DAT4532D is a 2 Channel din rail mount converter. The dual channel converter is designed to save both in cost and space being only half an inch thick. It is programmable by PC or DIP Switches. The DAT4532D converts Voltages from 0-10Vdc with a minimum span of 1 V such as 0-10V, 1-5V, 2-10V and 0-5 V. It also converts Current from 0-20mA with a minimum span of 1 mA such as 4-20mA or 0-20mA . The DAT4532D converts this signal and linearizes. The DAT4532D provides two Voltages or Current outputs.

INPUT
2 x Current 4-20mA, 0-20mA.
2 x Voltage 0-10V, 2-10V.
OUTPUT
2 x Current 4-20mA, 0-20mA.
2 x Voltage 0-10V, 2-10V.
POWER SUPPLY
Power Supply Voltage 18-32Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
35 mA
CONFIGURATION
PC Configurable.
DIP Switch Configurable.
ISOLATION
Between 3 way 1500Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
3 1/2" x 4 1/2 " x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input:Channel A Current 4-20mA, Range 0-20mA Minimum span 1 mA. Voltage Range from 0 to 10 V Minimum span 1 V. See Data sheet for range.
Input:Channel A Current 4-20mA, Range 0-20mA Minimum span 1 mA. Voltage Range from 0 to 10 V Minimum span 1 V. See Data sheet for range.
Output: 2 X 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 55 mA max. Voltage output 25 mA max.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable

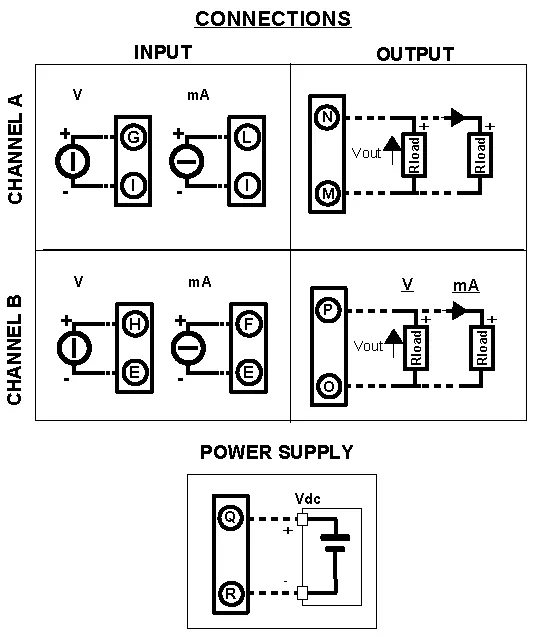

Drawings

Input: Channel A
Voltage Positive G and Negative I
mA Positive L and Negative I
Input: Channel B
Voltage Positive H and Negative E
mA Positive F and Negative E
Output Channel A
Current Positive N Negative M.
Voltage Positive N Negative M
Output Channel B
Current Positive P Negative O.
Voltage Positive P Negative O
Power supply Positive Q Negative R.

Dual Voltage converter wiring Diagram.


Applications

  • Dual Loop Isolation.
  • Dual mA signal boost and isolation.
  • Dual mA signal signal isolation.
