  • Modbus to Ethernet Isolated converter.
  • DAT3580 MBTCP FEATURES

    • UL, CSA, CE.
    • Ethernet 10/100Base-T Modbus TCP.
    • Baud rate up to 115.2 Kbps
    • Isolation.
    • RJ45 connection.

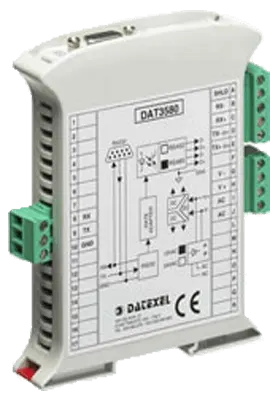

Modbus to Ethernet converter and gateway for Modbus RTU

General Description

The Modbus Ethernet gateway DAT3580-MBTCP allows connecting the Modbus RTU devices of a RS-485 network to the Ethernet network through the Modbus TCP protocol.

By means of the Telnet interface, it is possible to configure all the Modbus TCP side options (IP address, subnet mask, etc..) and the Modbus RTU side options (baud rate, etc...).

The device guarantees a full isolation between lines, allowing the use even in heavy environmental conditions. DAT3000 series devices are designed to be easily mounted on DIN rail, optimizing the space encumbrance. The thermal dissipation allows the devices to be mounted side by side, allowing a relevant reduction of required. The connections are made by means of removable screw terminals, to simplify the handling of the devices.

LED signaling of Ethernet activity and data rx-tx on the serial line allows a direct monitoring of the system functionality. The connection is made by removable screw-terminals (supply and RS-485) and RJ45 plug (Ethernet).

DAT3580-MBTCP is in compliance with the 89/336/EEC directive on the electromagnetic compatibility.

The device is housed in a rough self-extinguishing plastic container which, thanks to its thin profile of 22.5 mm only, allows a high density mounting on EN- 50022 standard DIN rail.

The device is housed in a rough self-extinguishing plastic container which, thanks to its thin profile of 22.5 mm only, allows a high density mounting on EN-50022 standard DIN rail.

INPUT
Ethernet RJ45.
OUTPUT
RS485.
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
45 mA
CONFIGURATION
None.
ISOLATION
Between Input/Ethernet 1500 Vac.
Between Power Supply/RS485 or RS422 2000Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
4" x 5" x 1"
100 x 120x x 22.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Network interface Ethernet 10/100Base-T
Protocol Modbus TCP
Connection RJ-45
38400bps 1,2 Km
19200bps 2 Km
9600bps 3 Km
4800bps 4 Km
2400bps 5 Km
1200bps 7 Km
Number of Modules Up to 32
Switching time 150us
Power Supply 18 to 30Vdc
Isolation 1500 Vac Power Supply / Ethernet
  2000 Vac Power Supply / RS485-422
  2000 Vac Ethernet / RS485-422
Temperature rating: Operative- 4°F +145°F - 20°C +60°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: W 4 L 4 3/4 H 1" 100 mm X 120 mm x 22mm
Weight: 7 oz 160 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

Drawings

Power Supply
DC Power Positive H Negative G

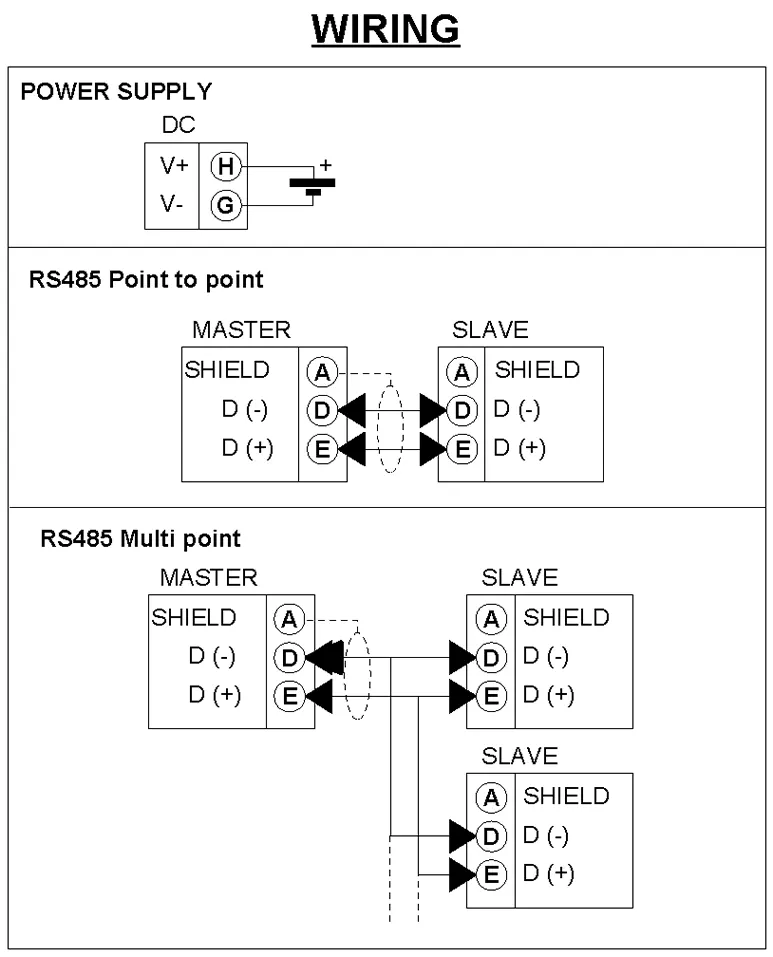

Modbus Ethernet gateway wiring Diagram.


Applications

  • Modbus Ethernet comms..
  • Modbus TCIP.
