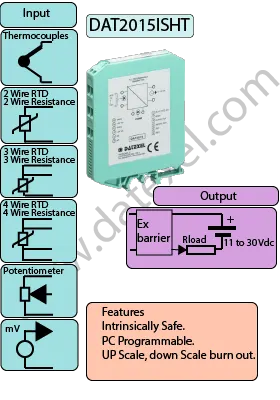

The High Temperature IS certified DAT2015ISHT is a Temperature transmitter with PC programmability. The input can be T/C, RTD, mA, mV, resistance and potentiometer. The DAT2015ISHT will linearize the temperature input and provide a 4-20mA output signal.
The DAT2015ISHT is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.
The DAT2015ISHT is programmable by PC based software which has been developed by DATEXEL to be user friendly.
For resistance and RTD's sensors it is possible to program the cable compensation for 3 or 4 wires.
It is possible to set the minimum and maximum values of the input and output ranges in any point of the scale, keeping the minimum span shown in the Data Sheet. Also, high burn out alarm or low burn out alarm is selectable.
The DAT2015ISHT is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.
The DAT2015ISHT is able to measure and linearize the standard thermocouples with internal cold junction compensation.
|Protection Mode:||II 1 G Ex ia IIC certified with Directive 94/9/CE ATEX|
|Input:||mV, Resistance, Thermocouple Type J, K, S, R, B, E, T and N.|
|RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer,|
|Resistance. See Data sheet for range.|
|Power Supply:||10 to 32 Vdc|
|Temperature rating:||Operative- 4°F +158°F - 20°C +70°C|
|Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.|
|Humidity:||(non condensing) 0-90%.|
|Dimensions:||W x L x H inch 3 1/2 x 4 1/2 x 1/2, mm 90 x 112 x 12.5.|
|Weight:||3 oz 90 g.|
|EMC.||For industrial environments.|
|Immunity: EN 61000-6-2.|
|Emission: EN 61000-6-4.|
|Thermocouple||Terminals + L and - I|
|mV||Terminals + L and - I|
|RTD 2 wire||Terminals G and I|
|Resistance 2 wires||Terminals G and I|
|RTD 3 wire||Terminals I and G Compensation H|
|Resistance 3 wires||Terminals I and G Compensation H|
|RTD 4 wire||Terminals L and H Compensation I and G|
|Resistance 4 wires||Terminals L and H Compensation I and G|
|Potentiometer||Terminal I and G wiper H|
|Volts||Positive E Negative I|
|mA||Positive F Negative I|
|Output and Power supply||Positive +V P Negative -V O|
