  • IS Head Mounted Temperature Transmitter DAT1015ISHT.
  • DAT1015ISHT FEATURES

    • ATEX High Temperature IS Certified.
    • Input Thermocouples, RTD's, Potentiometers, Resistance and mV.
    • PC Programmable.
    • Up Scale, Down scale Burn Out.
    • Protection II1G Ex ia 11C.

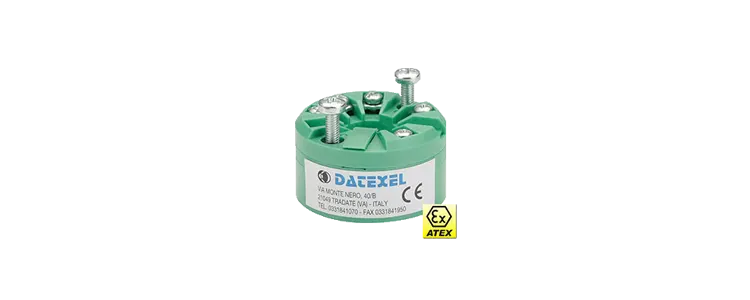

IS Head Mounted Temperature Transmitter DAT1015ISHT

General Description.

The High Temperature IS Certified Head Mounted Temperature Transmitter DAT1015ISHT is certified to a T4 rating meaning that the temperature rating is 185°f (85°C). The DAT1015ISHT can accept Thermocouples, RTD's, mV's, Potentiometers and resistance Inputs and provides a 4-20mA (2 wire) output the output can be inverted to provide a 20-4mA output. Also, the burnt out failure can be set to drive to full scale or low scale.

The DAT1015ISHT "in head Mounted Temperature Transmitter" is PC Programmable and the sensor, range, zero and linearization, is programmable with the Prodat software, available from DATEXEL.

The RTD and resistance input has the added feature of selecting 3 or 4 wire for compensating long cable runs improving accuracy.

INPUT
Thermocouples.
RTD Pt100, Pt1000, Ni100, Ni1000.
Resistance 0-200 0-500 0-2kohms
mV -100 to 700 mV
Potentiometer up to 2 k ohms
OUTPUT
4-20mA
POWER SUPPLY
Power Supply Voltage 10-32Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
20 mA
CONFIGURATION
PC Programmable.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H
1 3/4" x 1"
43 x 24 mm
Weight 1 1/2 oz 50 g
TEMPERATURE
Operating Temperature -4°F +158°F -20°C +70°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Protection Mode: II 1 G Ex ia IIC certified with Directive 94/9/CE ATEX
Zone: Zone 0
Input: Thermocouples Type J, K, S, R, B, E, T and N.
  RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer,
  Resistance. See Data sheet for range.
Output: 4-20mA.
Power Supply: 10 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable

Drawings

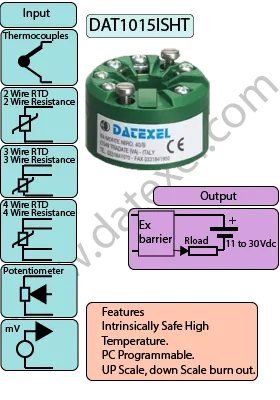

Input
Thermocouple Positive 2 Negative 1
mV Positive 2 Negative 1
RTD and Resistance 2 wires Terminals 1 and 3
RTD and Resistance 3 wires Terminal 1 and 3 Common 4
RTD and Resistance 4 wires Terminal 1 Comp 2 and Terminal 3 Comp 4
Potentiometer Terminal 1 and 3 Wiper 4
Output and Power supply Positive +V Negative -V

IS Head Mounted Temperature Transmitter DAT1015ISHT wiring Diagram


Applications

  • ATEX High Temperature Thermocouple Transmitter.
  • IS Certified High Temperature Thermocouple Transmitter.
  • High Temperature ATEX Intrinsically Safe Thermocouple Transmitter.
