  • IS Temperature Transmitter DAT1010ISHT.
  • DAT1010ISHT FEATURES

    • ATEX High Temperature IS Certified.
    • Input RTD's, Potentiometers, Resistance and mV.
    • PC Programmable.
    • Up Scale, Down scale Burn Out.
    • 4-20mA Output.

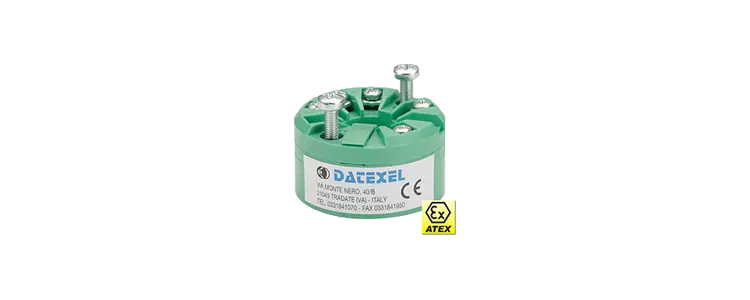

IS Temperature Transmitter DAT1010ISHT

General Description.

The High Temperature IS Certified Hockey Puck Temperature Transmitter DAT1010ISHT is an RTD Head Mounted Temperature Transmitter. The input also accept mV's, Potentiometers and resistance Inputs. The DAT1010ISHT "in head Mount Temperature Transmitter" is PC Programmable. The sensor, range, zero and linearization, is programmable with the Prodat software, available from DATEXEL. The input is measured, linearized and converted to the industrial standard of 4-20mA signal. The RTD and resistance input has the added feature of selecting 3 or 4 wire for higher accuracy. There is a burn out failure alarm that can be programmed to drive the output signal High and Low. The input on the DAT1010ISHT has a high range of tolerance and the DAT1010ISHT can accept any voltage between 11 V and 30 Volt. The power is Loop Powered.

The DAT1010ISHT is accurate to 0.1% full scale mV Linear and has less than 0.02%/°f thermal drift.

The DAT1010ISHT is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

The DAT1010ISHT is housed in a self-extinguish plastic enclosure suitable for DIN B in-head mounting.

There is a mounting kit available to mount the DAT1010ISHT on DIN rail.

INPUT
RTD Pt100, Pt1000, Ni100, Ni1000.
Resistance 0-200 0-500 0-2kohms
mV -100 to 700 mV
Potentiometer up to 2 k ohms
OUTPUT
4-20mA
POWER SUPPLY
Power Supply Voltage 10-32Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
20 mA
CONFIGURATION
PC Programmable.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H
1 3/4" x 1"
43 x 24 mm
Weight 1 1/2 oz 50 g
TEMPERATURE
Operating Temperature -4°F +158°F -20°C +70°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Protection Mode: II 1 G Ex ia IIC certified with Directive 94/9/CE ATEX
Zone: Zone 0
Input: RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer,
  Resistance. See Data sheet for range.
Output: 4-20mA.
Power Supply: 10 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable

Drawings

Input
mV Positive 2 Negative 1
RTD and Resistance 2 wires Terminals 1 and 3
RTD and Resistance 3 wires Terminal 1 and 3 Common 4
RTD and Resistance 4 wires Terminal 1 Comp 2 and Terminal 3 Comp 4
Potentiometer Terminal 1 and 3 Wiper 4
Output and Power supply Positive +V Negative -V

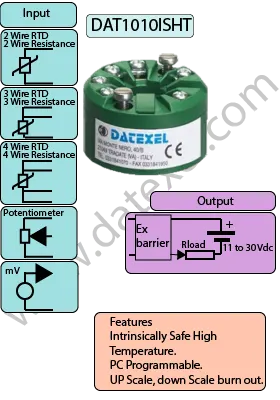

IS Temperature Transmitter DAT1010ISHT wiring diagram.


Applications

  • ATEX High Temperature IS Certified Areas RTD Transmitter.
  • High Temperature Intrinsically Safe areas.
  • IS High Temperature Cert Resistance Transmitter.
