  • Isolated Intrinsically Safe, Temperature Transmitter DAT1065IS.
  • DAT1065IS FEATURES

    • ATEX Isolated Temperature Transmitter
    • Input Thermocouples, RTD's, Potentiometers, Resistance and mV.
    • PC Programmable.
    • Up Scale, Down scale Burn Out.
    • Protection II1G Ex ia 11C.

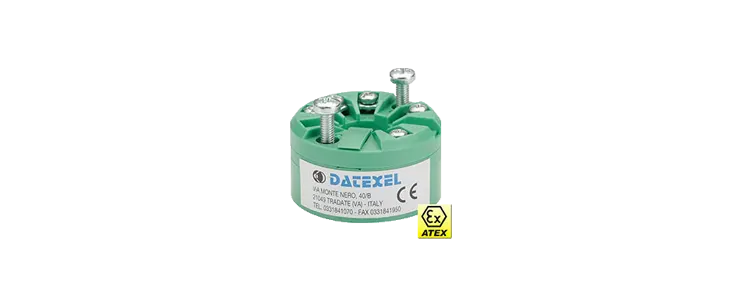

Isolated Intrinsically Safe, Temperature Transmitter DAT1065IS

General Description.

The isolated Intrinsically Safe temperature Transmitter with universal input DAT1065IS is a hockey puck (head mount) temperature Transmitter with PC programmability. The input can be K-Type Thermocouples, E-Type Thermocouples, J-Type Thermocouples, N-Type Thermocouples, R-Type Thermocouples, S-Type Thermocouples, T-Type Thermocouples.Pt100, Pt1000, Ni100, Ni1000 or mV and potentiometer. The DAT1065IS will linearize the temperature input and provide a 4-20mA output signal.

The DAT1065IS is isolated between the input and power supply/output to 2000V, eliminates the effects of any ground loops and allows the use of the transmitter in heavy environmental conditions found in industrial applications.

The DAT1065IS is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.

The DAT1065IS is programmable by PC based software which has been developed by DATEXEL to be user friendly.

For resistance and RTD's sensors it is possible to program the cable compensation for 3 or 4 wires.

It is possible to set the minimum and maximum values of the input and output ranges in any point of the scale, keeping the minimum span shown in the Data Sheet. Also high burn out alarm or low burn out alarm is selectable.

The DAT1065IS is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

The DAT1065IS is housed in a self-extinguish plastic enclosure suitable for DIN B in-head mounting.

There is a mounting kit available to mount the DAT1065IS on DIN rail.

INPUT
Thermocouple.
RTD Pt100, Pt1000, Ni100, Ni1000.
Resistance 0-200 0-500 0-2kohms
mV -100 to 700 mV
Potentiometer up to 2 k ohms
OUTPUT
4-20mA
POWER SUPPLY
Power Supply Voltage 7-32Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
20 mA
CONFIGURATION
PC Programmable.
ISOLATION
Between Input and Output
1500 Vac, 50 Hz, 1 min.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H
1 3/4" x 1"
43 x 24 mm
Weight 1 1/2 oz 50 g
TEMPERATURE
Operating Temperature -4°F +158°F -20°C +70°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Protection Mode: II 1 G Ex ia IIC certified with Directive 94/9/CE ATEX
Zone: Zone 0
Input: Thermocouple Type J, K, S, R, B, E, T and N.
  RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer,
  Resistance. See Data sheet for range.
Output: 4-20mA.
Power Supply: 7 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable

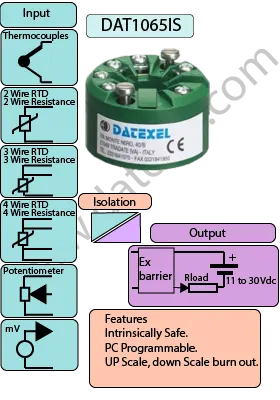

Drawings

Input
Thermocouple Positive 2 Negative 1
mV Positive 2 Negative 1
RTD and Resistance 2 wires Terminals 1 and 3
RTD and Resistance 3 wires Terminal 1 and 3 Common 4
RTD and Resistance 4 wires Terminal 1 Comp 2 and Terminal 3 Comp 4
Potentiometer Terminal 1 and 3 Wiper 4
Output and Power supply Positive +V Negative -V

Isolated Intrinsically Safe, Temperature Transmitter DAT1065IS.


Applications

  • ATEX Isolated Thermocouple Transmitter.
  • ATEX IS certified Head Mount Temperature Transmitter.
  • Isolated ATEX intrinsically safe Pt100 Transmitter.
  • Isolated Resistance Transmitter.
