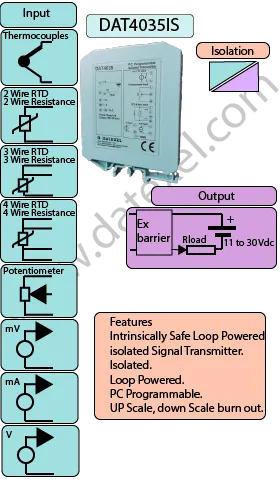

  • Intrinsically Safe Loop Powered Isolated Signal Transmitter DAT4035IS.
  • DAT4035 IS FEATURES

    • ATEX Intrinsically Safe approved Universal input Loop Powered Isolator.
    • Input Thermocouples, RTD's, Potentiometers, Resistance and mV.
    • PC Programmable.
    • Up Scale, Down scale Burn Out.
    • Protection II1G Ex ia 11C.

Intrinsically Safe Loop Powered Isolated Signal Transmitter DAT4035IS

General Description

The Intrinsically Safe Loop Powered isolated Signal Transmitter DAT4035IS is an ATEX approved DIN Rail mount signal Transmitter. The DAT4035IS has a Universal Input and a 4-20mA output. The DAT4035IS is a PC programmable Transmitter that can accept thermocouples, RTD, mA, V, mV, resistance and potentiometer on the input. The DAT4035IS will linearize the input and provide a 4-20mA output signal. The output is isolated from the input.

The DAT4035IS is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.

The DAT4035IS is programmable by PC based software which has been developed by DATEXEL to be user friendly.

For resistance and RTD's sensors it is possible to program the cable compensation for 3 or 4 wires.

It is possible to set the minimum and maximum values of the input and output ranges in any point of the scale, keeping the minimum span shown in the Data Sheet. Also, high burn out alarm or low burn out alarm is selectable.

The DAT4035IS is isolated between the power supply and the input/output to 2000V, eliminates the effects of any ground loops and allows the use of the transmitter in heavy environmental conditions found in industrial applications. The DAT4035IS is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

The DAT4035IS is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

The DAT4035IS is able to measure and linearize the standard thermocouples with internal cold junction compensation.

INPUT
Thermocouples, RTD, Voltage, Potentiometer, Resistance.
OUTPUT
Current 4-20mA..
POWER SUPPLY
Power Supply Voltage 10-32Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
3.5 mA
CONFIGURATION
PC Configurable
ISOLATION
Between Input/Output 2000Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
3 1/2" x 4 1/2 " x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Protection Mode: II 1 G Ex ia IIC certified with Directive 94/9/CE ATEX
Zone: Zone 0
Input: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, RTD, mV, V, mA. See Data sheet for range.
Output: 4-20mA. 2 Wire.
Power Supply: 10 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC

Drawings

Input
Thermocouple Terminals + L and - I
mV Terminals + L and - I
RTD 2 wire Terminals G and I
Resistance 2 wires Terminals G and I
RTD 3 wire Terminals I and G Compensation H
Resistance 3 wires Terminals I and G Compensation H
RTD 4 wire Terminals L and H Compensation I and G
Resistance 4 wires Terminals L and H Compensation I and G
Potentiometer Terminal I and G wiper H
Volts Positive E Negative I
mA Positive F Negative I
Output and Power supply Positive +V P Negative -V O

Intrinsically Safe Loop Powered isolated Signal Transmitter wiring Diagram.


Applications

  • ATEX 4-20mA isolation.
  • IS Certified Isolated Signal Conditioning.
  • Intrinsically Safe Loop Powered Galvanic Isolation.
