  • Intrinsically Safe Trip Amplifier DAT4235ISB.
  • DAT4235ISB FEATURES

    • Protection mode II (1) G D [Ex ia] IIC-[Ex iaD]
    • Universal input Isolated Limit Alarm.
    • ATEX Intrinsically Safe Trip Amp.
    • Input Thermocouples, RTD's, Potentiometers, Resistance, mA, Volts and mV.
    • Output 2 X SPDT Relays
    • ATEX Intrinsically Safe.
    • PC Configurable.
    • DIN Rail Mounted.

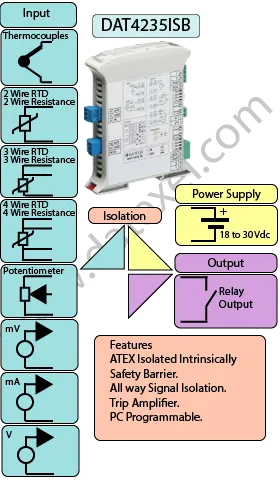

Intrinsically Safe Trip Amplifier DAT4235ISB

General Description

The Intrinsically Safe Trip Amplifier DAT4235ISB is a Din Rail mount trip amplifier that is PC programmable and is ATEX approved. The input can be thermocouples, RTD, mA, V, mV, resistance or potentiometer. The DAT4235ISB provides 2 relays (SPDT) Single Pole Double Throw.

The DAT4235ISB is programmable by PC based software which has been developed by DATEXEL to be user friendly.

For resistance and RTD's sensors it is possible to program the cable compensation for 3 or 4 wires.

It is possible to set the minimum and maximum values of the input and output ranges in any point of the scale, keeping the minimum span shown in the Data Sheet. Also, high burn out alarm or low burn out alarm is selectable.

The DAT4235ISB is isolated between the power supply and the input/output to 2000V, eliminates the effects of any ground loops and allows the use of the transmitter in heavy environmental conditions found in industrial applications. The DAT4235ISB is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

INPUT
Thermocouples, mA, RTD, Voltage, Potentiometer, Resistance.
OUTPUT
2 Relays
POWER SUPPLY
Power Supply Voltage 20-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
35 mA
CONFIGURATION
PC Configurable
ISOLATION
Between Input/Output 2000Vac.
Between Input/Power Supply 2000Vac.
Between Power Supply/Output 1500Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
4" x 4 3/4 " x 1"
100 x 120 x 22.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, RTD, mV, V, mA. See Data sheet for range.
Output: 2 Relays SPDT 2 A at 250Vac, 2A at 30Vdc.
Power Supply: 20 to 30 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 4" x 4 3/4 " x 1" 100 x 120 x 22.5 mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC

Drawings

Input
Thermocouple Terminals + 1 and - 4
mV Terminals + 1 and - 4
Volts Terminals + 5 and - 7
mA Terminals + 6 and - 7
RTD 2 wire Terminals 1 and 4 Link 1 and 2
RTD 3 wire Terminals 3 and 4 Link 1 and 2 and 3
RTD 4 wire Terminals 3 and 2 Link 1 and 4, and Link 3 and 2.
Potentiometer Terminals 3 and 4 wiper 1 Link 2 and 3
Power supply Positive +V L Negative -V K
Output
Relay 1
Common Terminal G
Normally Closed Terminal E
Normally Open Terminal F
Relay 2
Common Terminal H
Normally Closed Terminal J
Normally Open Terminal I

Intrinsically Safe Trip Amplifier wiring Diagram.


Applications

  • ATEX Approved Trip Amplifier.
  • Intrinsically Safe isolated Trip Amplifier.
