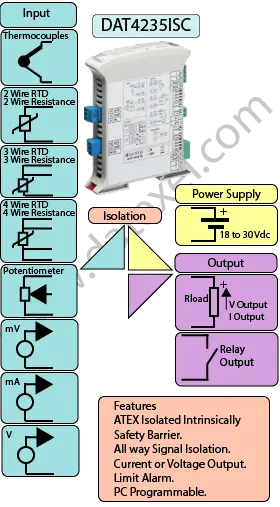

The Intrinsically Safe Signal converter and Limit Alarm DAT4235ISC is a Din Rail mount trip amplifier that is PC programmable and is ATEX approved. The input can be thermocouples, RTD, mA, V, mV, resistance or potentiometer. The DAT4235ISC provides 2 relays (SPDT) Single Pole Double Throw.
The DAT4235ISC is programmable by PC based software which has been developed by DATEXEL to be user friendly.
For resistance and RTD's sensors it is possible to program the cable compensation for 3 or 4 wires.
It is possible to set the minimum and maximum values of the input and output ranges in any point of the scale, keeping the minimum span shown in the Data Sheet. Also, high burn out alarm or low burn out alarm is selectable.
The DAT4235ISC is isolated between the power supply and the input/output to 2000V, eliminates the effects of any ground loops and allows the use of the transmitter in heavy environmental conditions found in industrial applications. The DAT4235ISC is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.
|Input:||K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, RTD, mV, V, mA. See Data sheet for range.|
|Output Analog:||4-20mA, 0-20mA, 0-10V.|
|Output:||2 Relays SPDT 2 A at 250Vac, 2A at 30Vdc.|
|Power Supply:||20 to 30 Vdc|
|Temperature rating:||Operative- 4°F +158°F - 20°C +70°C|
|Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.|
|Humidity:||(non condensing) 0-90%.|
|Dimensions:||4" x 4 3/4 " x 1" 100 x 120 x 22.5 mm|
|Weight:||3 oz 90 g.|
|EMC.||For industrial environments.|
|Immunity: EN 61000-6-2.|
|Emission: EN 61000-6-4.|
|Thermocouple||Terminals + 1 and - 4|
|mV||Terminals + 1 and - 4|
|Volts||Terminals + 5 and - 7|
|mA||Terminals + 6 and - 7|
|RTD 2 wire||Terminals 1 and 4 Link 1 and 2|
|RTD 3 wire||Terminals 3 and 4 Link 1 and 2 and 3|
|RTD 4 wire||Terminals 3 and 2 Link 1 and 4, and Link 3 and 2.|
|Potentiometer||Terminals 3 and 4 wiper 1 Link 2 and 3|
|Power supply||Positive +V L Negative -V K|
|Current Active output||Positive D Ground C|
|Current Passive output||Positive A Ground C|
|Voltage output||Positive B Ground A|
|Normally Closed||Terminal E|
|Normally Open||Terminal F|
|Normally Closed||Terminal J|
|Normally Open||Terminal I|
