  • Intrinsically Safe DIN Rail Mount Temperature Transmitter DAT2015IS.
  • DAT2015IS FEATURES

    • ATEX IS Certified Transmitter.
    • Input Thermocouples, RTD's, Potentiometers, Resistance and mV.
    • PC Programmable.
    • Up Scale, Down scale Burn Out.
    • Protection II1G Ex ia 11C.

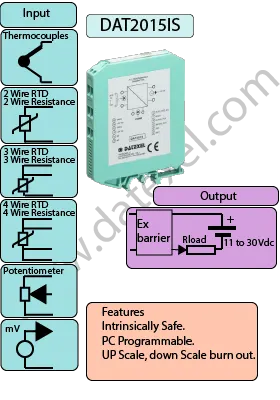

Intrinsically Safe DIN Rail Mount Temperature Transmitter DAT2015IS

General Description

The Intrinsically Safe Din Rail Mount Temperature Transmitter DAT2015IS is a ATEX approved universal input signal transmitter with PC programmability. The input can be thermocouples, RTD, mV, resistance and potentiometer. The DAT2015IS will linearize the temperature input and provide a 4-20mA output signal.

The DAT2015IS is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.

The DAT2015IS is programmable by PC based software which has been developed by DATEXEL to be user friendly.

For resistance and RTD's sensors it is possible to program the cable compensation for 3 or 4 wires.

It is possible to set the minimum and maximum values of the input and output ranges in any point of the scale, keeping the minimum span shown in the Data Sheet. Also, high burn out alarm or low burn out alarm is selectable.

The DAT2015IS is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

The DAT2015IS is able to measure and linearize the standard thermocouples with internal cold junction compensation.

INPUT
Thermocouple. RTD.
Resistance 0-300, 0-2 k ohms.
V -0.1 to 0.7 V.
Potentiometer up to 2k ohms
OUTPUT
Current 4-20mA
POWER SUPPLY
Power Supply Voltage 10-32Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
20 mA
CONFIGURATION
PC Programmable.
ISOLATION
None.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H
3 1/2" x 4 1/2" x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Protection Mode: II 1 G Ex ia IIC certified with Directive 94/9/CE ATEX
Zone: Zone 0
Input: mV, Resistance, Thermocouple Type J, K, S, R, B, E, T and N.
  RTD Pt100, Pt1000, Ni100, Ni1000, Potentiometer,
  Resistance. See Data sheet for range.
Output: 4-20 mA
Power Supply: 10 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: W x L x H inch 3 1/2 x 4 1/2 x 1/2, mm 90 x 112 x 12.5.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable

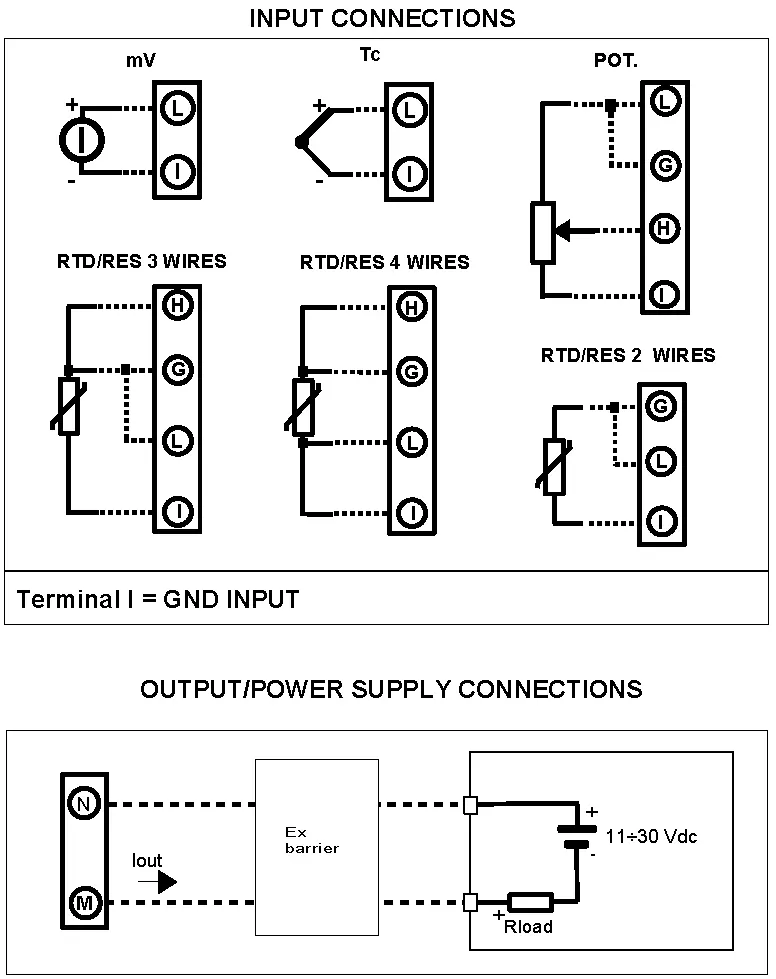

Drawings

Input
Thermocouple Terminals + L and - I
mV Terminals + L and - I
RTD 2 wire Terminals G and I
Resistance 2 wires Terminals G and I
RTD 3 wire Terminals I and G Compensation H
Resistance 3 wires Terminals I and G Compensation H
RTD 4 wire Terminals L and H Compensation I and G
Resistance 4 wires Terminals L and H Compensation I and G
Potentiometer Terminal I and G wiper H
Volts Positive E Negative I
mA Positive F Negative I
Output and Power supply Positive +V P Negative -V O

Intrinsically Safe DIN Rail Mount Temperature Transmitter Wiring Diagram


Applications

  • ATEX DIN Rail Mount Thermocouple Transmitter.
  • IS Certified DIN Rail Mount Temperature Transmitter
  • Intrinsically Safe Din Rail Mount Pt100 Transmitter .
  • ATEX IS DIN Rail Mount Resistance Transmitter.
