  • LED Loop Powered Indicator.
  • DAT8050 FEATURES

    • LED Loop Powered Panel Indicator.
    • 4 Digits with Engineering units.
    • 1/4 DIN Panel Mounted.

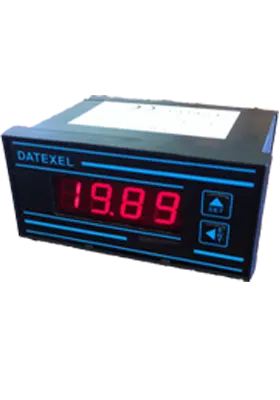

LED Loop Powered Display DAT8050

General Description

The DATEXEL DAT8050 is a LED 4 Digit LED loop powered indicator accepts an input and a power supply from a 4-20 mA current loop signal.

No external power supply is needed.

The display can be adjusted to have a span between -1999 and 9999 points, the Zero can be adjusted between -1999 and 9999 by buttons on the front panel. It is also possible to set the decimal point.

The DATEXEL DAT8050 is designed for mounting in a panel in accordance with DIN 43700 standard. It also has a function to freeze (HOLD) the display.

The DATEXEL DAT8050 is in compliance with the directive CEE/336/89 on the Electromagnetic Compatibility.

When the measured current is lower than 3.8 mA, the display will show the message " Lo "; in the same way, when the current measured is higher than 20.2 mA, the display will show the message " Hi ".

It is possible to apply the desired engineering unit using the adhesive labels supplied with the device.

The DATEXEL DAT8050 unit, developed, manufactured and tested in strict accordance with the quality assurance standard UNI EN ISO9001:2000, is in compliance with the 89/336/EEC directive on the Electromagnetic Compatibility. It is housed in a strong plastic enclosure of 48 x 96 x 74 mm in accordance with the standard DIN43700.

INPUT
4-20mA.
OUTPUT
4 Digit Display.
POWER SUPPLY
None
CURRENT CONSUMPTION
Less than 5 V Volt drop, 3 mA.
CONFIGURATION
DIP Switch Configurable.
ISOLATION
Between Input/Output/Power Supply 1500Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
3 3/4" x 1 7/8" x 2 1/2"
96 x 48 x 64 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: 4-20mA.
Volt drop Less than 5 V
Display 4 Digits
Temperature rating: Operative- 4°F +158°F - 10°C +60°C
  Temperature Storage Temperature - 40°F +165°F - 40°C +80°C.
Humidity: (none condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: W 2 5/8" x 1 1/4" x 1 1/16" 67 mm X 32 mm x 27mm
Weight: 3 oz 100 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4

Drawings

Input
D 0 Terminal 16 and 12

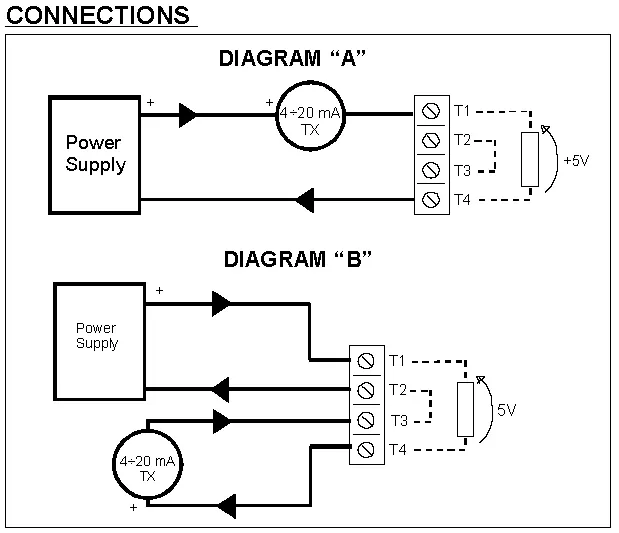

 wiring Diagram.


Applications

  • LED Loop Powered Display.
  • 4-20mA transmitter Display.
