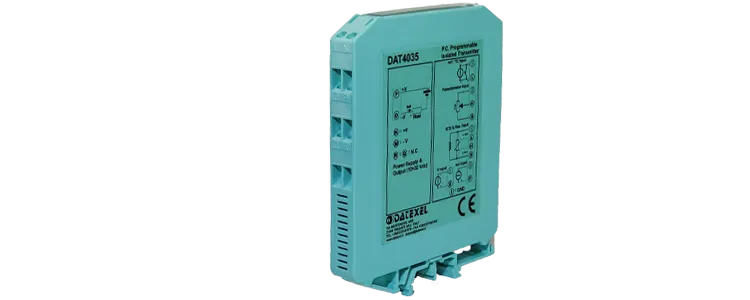

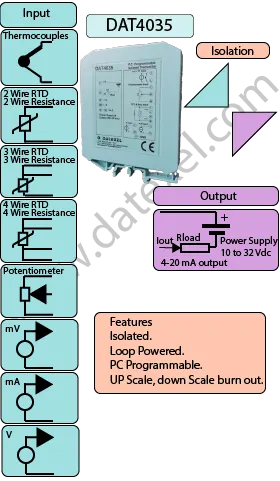

The Loop Powered Isolated Transmitter DAT4035 is a DIN Rail mount signal Transmitter with PC programmability. The input can be thermocouples, RTD, mA, V, mV, resistance and potentiometer. The DAT4035 will linearize the input and provide a 4-20mA output signal.
The DAT4035 is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.
The DAT4035 is programmable by PC based software which has been developed by DATEXEL to be user friendly.
For resistance and RTD's sensors, it is possible to program the cable compensation for 3 or 4 wires.
It is possible to set the minimum and maximum values of the input and output range in any point of the scale, keeping the minimum span shown in the Data Sheet. Also, high burn out alarm or low burn out alarm is selectable.
The DAT4035 is isolated between the power supply and the input/output to 2000V, eliminates the effects of any ground loops and allows the use of the transmitter in heavy environmental conditions found in industrial applications. The DAT4035 is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.
The DAT4035 is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.
The DAT4035 is able to measure and linearize the standard thermocouples with internal cold junction compensation.
|Input:||K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, RTD, mV, V, mA. See Data sheet for range.|
|Output:||4-20mA. 2 Wire.|
|Power Supply:||10 to 32 Vdc|
|Temperature rating:||Operative- 4°F +158°F - 20°C +70°C|
|Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.|
|Humidity:||(non condensing) 0-90%.|
|Dimensions:||3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.|
|Weight:||3 oz 90 g.|
|EMC.||For industrial environments.|
|Immunity: EN 61000-6-2.|
|Emission: EN 61000-6-4.|

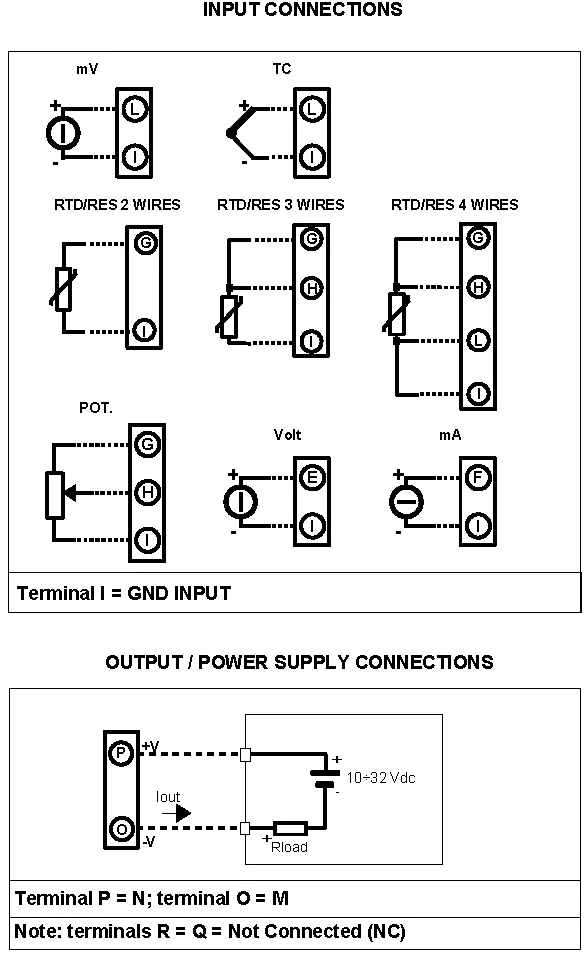

|Thermocouple||Terminals + L and - I|
|mV||Terminals + L and - I|
|RTD 2 wire||Terminals G and I|
|Resistance 2 wires||Terminals G and I|
|RTD 3 wire||Terminals I and G Compensation H|
|Resistance 3 wires||Terminals I and G Compensation H|
|RTD 4 wire||Terminals L and H Compensation I and G|
|Resistance 4 wires||Terminals L and H Compensation I and G|
|Potentiometer||Terminal I and G wiper H|
|Volts||Positive E Negative I|
|mA||Positive F Negative I|
|Output and Power supply||Positive +V P Negative -V O|
