  • Hart Signal Isolator.
  • DAT511H FEATURES

    • Loop Powered 2 Wire Isolator with Hart Compatibility.

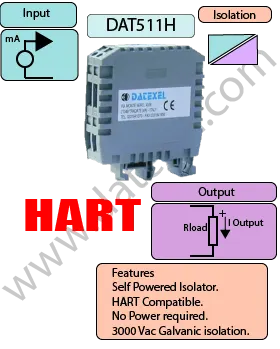

HART signal isolator DAT511H

General Description

The HART Signal Isolator DAT511H is a passive 0÷20 mA or 4-20mA current loop isolator that allows the HART protocol to pass though the device.

The DAT511H allows the bidirectional communication of the HART Protocol signal whilst still Isolating the 4-20mA input and Output. The Isolation voltage is up to 1500 Vac for 1 Minute. The DAT511H does not need any external power supply and uses a volt drop of 3 Vdc Max on the Input Signal.

INPUT
4-20mA HART.
OUTPUT
4-20mA Loop Powered 2 Wire HART.
POWER SUPPLY
Power Supply Voltage 10-32Vdc.

CURRENT CONSUMPTION
3.5.
CONFIGURATION
Front panel.
ISOLATION
None.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
11/16" x 2 1/2" x 2 1/2"
17 x 62x x 64 mm
Weight 2 oz 60 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input:

0-20 mA or 4-20mA.

Output: 0-20 mA or 4-20mA.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (none condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: W 11/16" L 2 1/2" H 2 1/2" 17 mm X 62 mm x 64mm
Weight: 2 oz 60 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

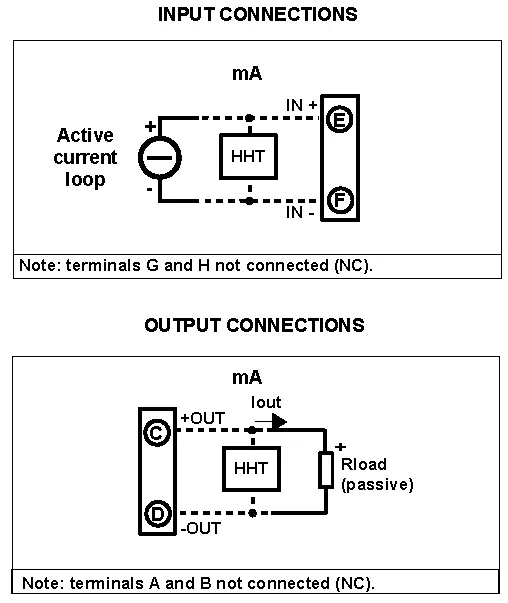

Drawings

Input
mA Positive E Negative F
Output
mA Positive C Negative D

Hart Signal Isolator wiring Diagram.


Applications

  • Loop Powered Isolator with Hart.
