  • mV Transmitter DAT207.
  • DAT207 2W FEATURES

    • mV, Voltage and Current Transmitter.
    • Loop Powered (No Power, 2 wire).
    • DAT207A 2W 0-5 up to 0-200 mV.
    • DAT207B 2W 0-200mV up to 0-20V.
    • DAT207C 2W 0-5mA up to 0-50mA.

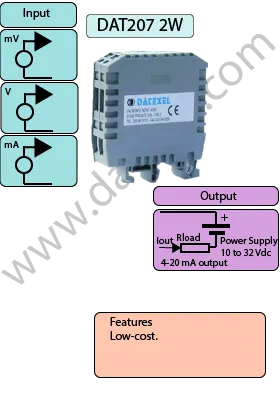

mV, mA, Voltage Transmitter DAT207 2W

General Description

The DAT207 2 W is a mV, mA and Voltage Transmitter that converts a mV, mA, Voltage into a current output.

There 2 Voltage version that range from 0-5mV to 0-20V and a mA input range from 0-5mA up to 50mA. The input from a sensor in the range of 0 - 5 mV up to 0 - 200 mV is converted and designed to provide a current output which is proportional to the input. The output is on terminals F and H. The DAT207 is available in a 2 wire or 3 wire output.

Span and zero adjustment screws are provided on top of the converter for ease of calibration and maintenance.

The DAT207 is in compliance with the standard 89/336/EEC on the Electromagnetic Compatibility.

It is housed in a plastic enclosure of 17 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
DAT207A 2W 0-5 up to 0-200 mV.
DAT207B 2W 0-200mV up to 0-20V.
DAT207C 2W 0-5mA up to 0-50mA.
OUTPUT
4-20mA Loop Powered 2 Wire.
POWER SUPPLY
Power Supply Voltage 10-32Vdc.

CURRENT CONSUMPTION
3.5.
CONFIGURATION
Front panel.
ISOLATION
None.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
11/16" x 2 1/2" x 2 1/2"
17 x 62x x 64 mm
Weight 2 oz 60 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input:
DAT207 A 2 W 0-5 mV up to 0-200mV
DAT207 B 2 W 0-200 mV up to 0-20V
DAT207 C 2 W 0-5 mA up to 0-50mA
Output: 4-20mA.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (None condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: W 11/16" L 2 1/2" H 2 1/2" 17 mm X 62 mm x 64mm
Weight: 2 oz 60 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

Drawings

Input
mV and Voltage Positive C Negative A
mA Positive C Negative A
Output
mA Positive G Negative H

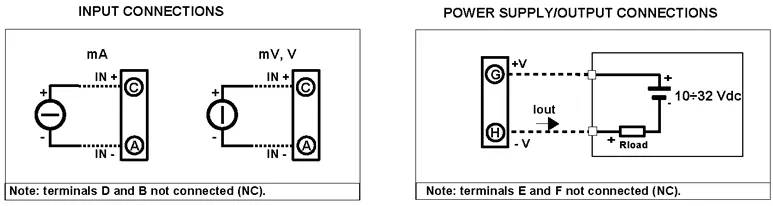

DAT207 wiring Diagram.


Applications

  • mV Transmitter.
  • Voltage Transmitter.
  • mA Transmitter.
