PLC Input Modules.

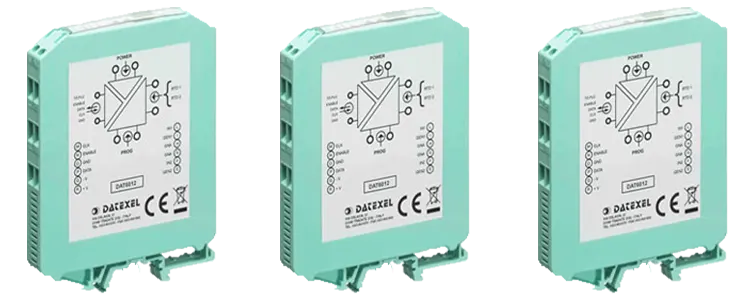

The DATEXEL DAT6000 series is a unique device designed to add analog inputs to a digital PLC with a few simple instructions. Downloaded into a standard PLC it is possible to acquire analog signals. The PLC will be able to read a 16 Bit digital input equal to the analog signal. The input, output and power supply are isplated from each other. The DAT6000 can linearize , filter and convert the input signal.

The DATEXEL DAT6011 converts two voltages -50 mV to 50 mV, -100 mV to 100 mV, -500 mV to 500 mV or -1000mV to 1000mV or thermocouples K Type, J Type, S type, B type, R type, E type, T type and N type to a digital PLC.

The DATEXEL DAT6012 converts two RTD's type Pt100, Pt1000, Ni100 and Ni1000, resistance 0 to 2000 Ohms and potentiometer 0-500 Ohms and 0-2000 Ohms to a digital PLC.

The DATEXEL DAT6013 converts two voltages -10V to 10V or current -20mA to 20mA. It is possible to convert 4-20mA and 0-10V signals to a digital PLC.

The DATEXEL DAT6021 converts four voltages -50 mV to 50 mV, -100 mV to 100 mV, -500 mV to 500 mV or -1000mV to 1000mV or thermocouples K Type, J Type, S type, B type, R type, E type, T type and N type to a digital PLC.

The DATEXEL DAT6023-I converts four currents -20mA to 20mA. It is possible to convert 4-20mA signals to a digital PLC.

The DATEXEL DAT6023-V converts two voltages -10V to 10V. It is possible to convert 0-10V signals to a digital PLC.



Analog to Digital PLC Modules
  Thermocouple to Digital PLC input card 4-20mA to Digital PLC input card 4-20mA to Digital PLC input card
  2 Channel Thermocouple to Digital PLC input cards. 2 Channel RTD to Digital PLC input cards. 2 Channel Ma and Volts to Digital PLC input cards.
Input Thermocouple & mV RTD, Resistance & Potentiometer Voltage & Current
Output 16 Bit 16 Bit 16 Bit
Channels

2

2

2

Isolated Yes Yes Yes
Information Page Thermocouple to Digital PLC input card 4-20mA to Digital PLC input card 4-20mA to Digital PLC input card
Buy On Line Thermocouple to Digital PLC Module RTD to Digital PLC Module 4-20mA to Digital PLC Module
Download Datasheet PDF DAT6011 Data sheet DAT6012 Data sheet DAT6013 Data sheet



Analog to Digital PLC Modules


Thermocouple to Digital PLC Module

Current to Digital PLC Module

Voltage to Digital PLC Module

  4 Channel Thermocouple to Digital PLC input cards. 4 Channel Ma to Digital PLC input cards. 4 Channel Volts to Digital PLC input cards.
Input Thermocouple & mV Current Voltage
Output 16 Bit 16 Bit 16 Bit
Channels

4

4

4

Isolated Yes Yes Yes
Information Page Thermocouple to Digital PLC Module Current to Digital PLC Module Voltage to Digital PLC Module
Buy On Line Thermocouple to Digital PLC Module 4-20mA to Digital PLC Module Voltage to Digital PLC Module
Download Datasheet PDF DAT6021 Data sheet DAT6023I Data sheet DAT6023V Data sheet

The DATEXEL DAT6000 series amplifies, linearizes, Isolator, filters and converts the analog signals to a high resolution digital signal, by a few simple instructions downloaded on to any PLC. It is possible to acquire more analog signals on one digital input.
