RS232 to Voltage converter, 8 Channels, DAT3028 RS232.

General Description

The RS232 to 0-10V Output converter DAT3028 is an 8 Channel Voltage output module. The DAT3028 converters RS232 into 0-10V. The DAT3028 Current and Voltage output is Isolated from the Power Supply and the RS232 signal. The Slew rate is adjustable. The DAT3028 is also available in the RS485 Modbus format.

INPUT
RS232.
OUTPUT
8 x 0-10V.
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
Between 30 and 100 mA
CONFIGURATION
PC Programmable.
ISOLATION
Between Input/Comms/Power Supply 2000Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
4" x 4 3/4" x 3/4"
100 x 120x x 22.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Output: 8 Channels
Voltage 0-10Volt
Communication:
RS232 RS232
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA.
Temperature rating: Operative Temperature - 4°F +140°F - 20°C +60°C Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 3 3/4X 3 1/2 X 1 7/8 inch, 90 x 74 x 48mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Slave/Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable.

Drawings

Output
Voltage Output 0 Positive 1 Negative 2
Voltage Output 1 Positive 3 Negative 4
Voltage Output 2 Positive 5 Negative 6
Voltage Output 3 Positive 7 Negative 8
Voltage Output 4 Positive 9 Negative 10
Voltage Output 5 Positive 11 Negative 12
Voltage Output 6 Positive 13 Negative 14
Voltage Output 7 Positive 15 Negative 16
Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND C
RS-232D C GND
  E RX
  F TX
Init Pin D Init Gnd C

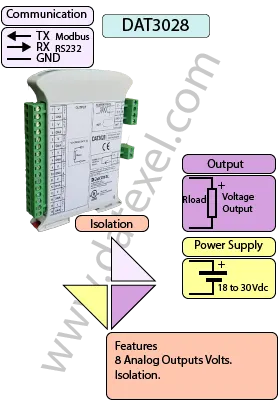

RS232 to 0-10V Output converter wiring Diagram.
