Thermocouple Temperature Transmitter DAT1015

General Description.

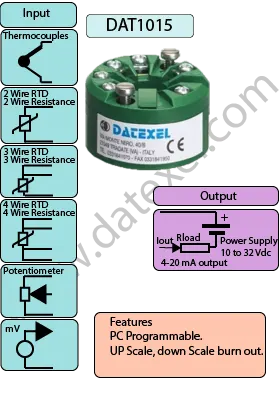

The economical DAT1015 Hockey Puck Temperature Transmitter is a Thermocouple Head Mounted Temperature Transmitter. The input also accepts RTD's, mV's, Potentiometers and resistance Inputs. The DAT1015 "in head Mounted Temperature Transmitter" is PC Programmable. The sensor, range, zero and linearization are programmable with the Prodat software, available from DATEXEL. The input is measured, linearized and converted to the industrial standard of 4-20mA signal. The RTD and resistance input has the added feature of selecting 3 or 4 wire for higher accuracy. There is a burn out failure alarm that can be programmed to drive the output signal High and Low.

The input on the DAT1015 has a high range of tolerance and the DAT1015 can accept any voltage between 10 V and 32 V. The power is Loop Powered 2 wire device.

The thermocouple selection type is J, K, S, R, B, E, T and N.

The RTD sensor is selectable for Pt100, Pt1000, Ni100 or Ni1000.

The resistance input is selectable from 0-200, 0-500, 0-2000 Ohms.

The mV input is selectable from -100mV to 700mV with a minimum span of 2 mV.

The Potentiometer can accept resistance in the range of 0-200 Ohms, 200-500 Ohms and 0.5 to 2 k ohms.

The RTD and resistance can be 2 wire or use compensation wire to improve accuracy I.E. 3 or 4 wire. There is an option to program the burn out failure alarm on the 4-20mA signal to High (20mA) or Low (4mA). The power supply to the Temperature Transmitter has a high range of tolerance and can accept voltage between 10 and 32 V. The DAT1015 Temperature-Transmitter is Loop Powered (2 Wire).

RTD Pt100, Pt1000, Ni100, Ni1000.
Resistance 0-200 0-500 0-2kohms
mV -100 to 700 mV
Potentiometer up to 2 k ohms
Power Supply Voltage 10-32Vdc
Reverse polarity protection 60Vdc
20 mA
PC Programmable.
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
Material self-extinguishing
Dimensions W X H
1 3/4" x 1"
43 x 24 mm
Weight 1 1/2 oz 50 g
Operating Temperature -4°F +158°F -20°C +70°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Input: Thermocouples Type J, K, S, R, B, E, T and N.
  RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer,
  Resistance. See Data sheet for range.
Output: 4-20mA.
Power Supply: 10 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable

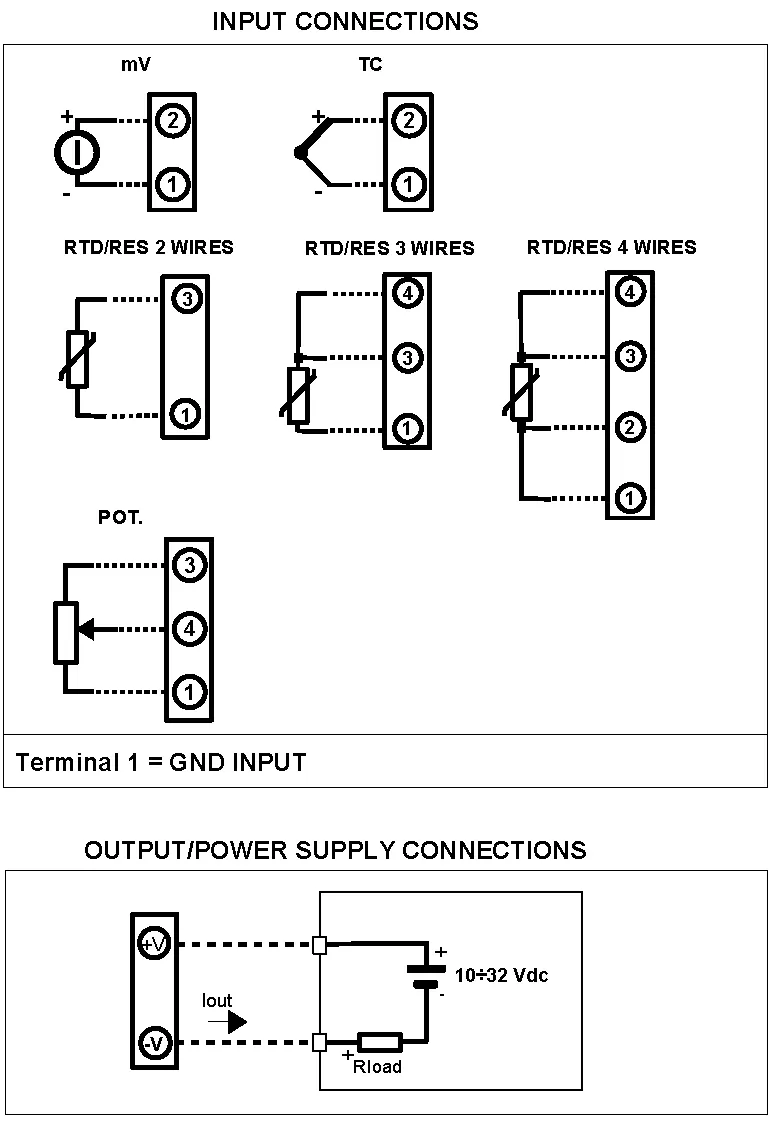

Thermocouple Positive 2 Negative 1
mV Positive 2 Negative 1
RTD and Resistance 2 wires Terminals 1 and 3
RTD and Resistance 3 wires Terminal 1 and 3 Common 4
RTD and Resistance 4 wires Terminal 1 Comp 2 and Terminal 3 Comp 4
Potentiometer Terminal 1 and 3 Wiper 4
Output and Power supply Positive +V Negative -V

Temperature Transmitter DAT1015


  • Thermocouple Transmitter.
  • K Type Thermocouple Transmitter.
  • J Type Thermocouple Transmitter.

Frequently Asked Questions

  • Why should I choose the DAT1015 when the DAT1010 has a mV input?
  • The DAT1015 has the option for thermocouple temperature linearization and also the DAT1015 has cold junction compensation.
  • I did buy the DAT1112 for thermocouple temperature transmission, what has replaced it?
  • The DAT1015 has replaced the DAT1112 and is a PC programmable temperature transmitter that accepts input from a whole range of different thermocouples.
