  • Thermocouple Temperature converter and mV Isolated converter DAT4531A.
  • DAT4531A FEATURES

    • UL, CSA, CE.
    • Isolated Thermocouple Temperature converter
    • Isolated mV converter
    • PC and DIP Switch Configurable
    • DIN Rail Mounted

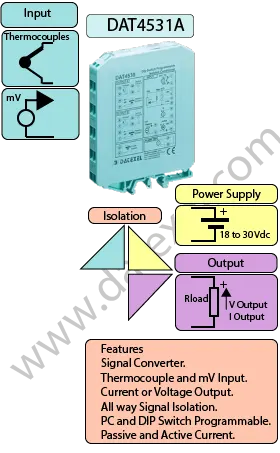

  • DAT4531A Isolated Temperature converter Block Diagram

Thermocouple Temperature converter and mV Isolated converter DAT4531A

General Description

The thermocouple temperature converter and mV converter DAT4531A is a din rail mount converter with internal or external cold junction compensation. It is programmable by PC or DIP Switches. The DAT4531A accepts signal from various Thermocouples (J, K, S, R, B, E, T, N) and mV up to 800mV. The DAT4531A converts this signal and makes the scale linearized. It also compensates for cold junction compensation. The DAT4531A provides Voltage or Current output.

INPUT
Thermocouples, mV.
OUTPUT
Current 4-20mA, 0-20mA 0-10V.

POWER SUPPLY
Power Supply Voltage 18-32Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
35 mA
CONFIGURATION
PC Configurable.
DIP Switch Configurable.
ISOLATION
Between 3 way 1500Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
3 1/2" x 4 1/2 " x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, mV, See Data sheet for range.
Output: 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable

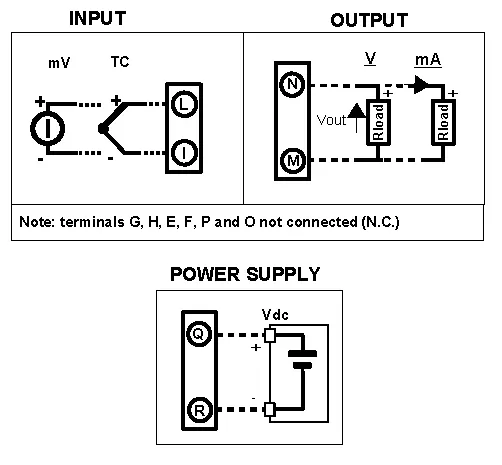

Drawings

Input
Thermocouple Positive L and Negative I
mV Positive L and Negative I
Output
Current Positive N Negative P.
Voltage Positive N Negative P
Power supply Positive Q Negative R.
Output
Relay 0 Normally Open A, Common B,

Thermocouple Temperature converter DAT4531A wiring Diagram.


Applications

  • Thermocouple Temperature converter.
  • mV Signal converter Isolated.
