  • USB to RS422 Isolated converter DAT3580-USB/4W.
  • DAT3580 USB4W RS422 FEATURES

    • UL, CSA, CE.
    • Automatic Baud rate up to 115.2 Kbps.
    • DC or AC Power.
    • Isolation.

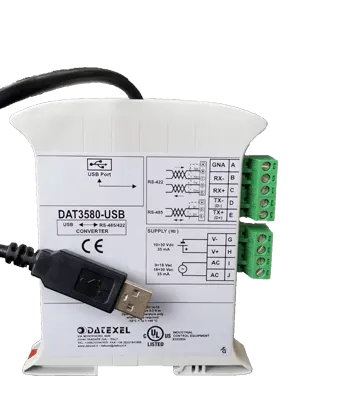

USB to RS422 Isolated converter DAT3580-USB/4W

General Description

The USB to RS485 isolated converter DAT3580-USB/4W guarantees a full isolation between the power supply, the USB port and the RS-422 line. It is also available to convert USB port to RS485.
The Isolation removes ground-loop effects, allowing the use of the device even in the heavy environmental conditions.
The transmission is asynchronous without settings of protocol, data format and baud rate.
The DAT3580-2USB/4W is mounted on DIN rail, optimizing the space encumbrance whereas the thermal dissipation allows it. The devices can be mounted side by side, allowing a relevant reduction of space. The connections are made by means of removable screw terminals, to simplify the handling of the devices.
The DAT3580 is in compliance with the 89/336/EEC directive on the electromagnetic compatibility.
The device is housed in a rough self-extinguishing plastic container which, thanks to its thin profile of 22.5 mm only, allows a high density mounting on EN- 50022 standard DIN rail.

INPUT
USB.
OUTPUT
RS422.
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
35 mA
CONFIGURATION
None.
ISOLATION
Between Input/Comms/Power Supply 2000Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
4" x 5" x 1"
100 x 120x x 22.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Max distance
Function USB to RS422
38400bps 1,2 Km
19200bps 2 Km
9600bps 3 Km
4800bps 4 Km
2400bps 5 Km
1200bps 7 Km
Number of Modules Up to 32
Switching time 150us
Power Supply 10 to 30Vdc
Sample Time 40 ms
Temperature rating: Operative- 4°F +145°F - 20°C +60°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: W 4 L 4 3/4 H 1" 100 mm X 120 mm x 22mm
Weight: 7 oz 160 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

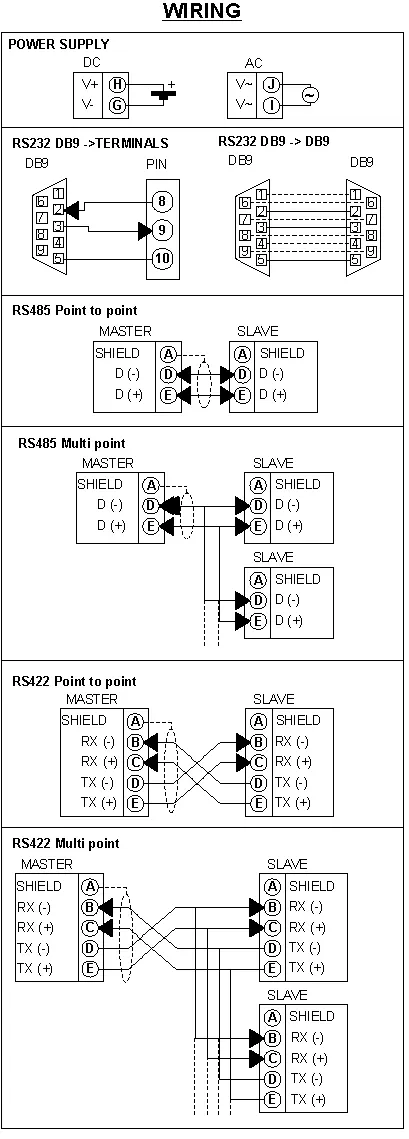

Drawings

Power Supply
DC Power Positive H Negative G
AC Power J and I

 wiring Diagram.


Applications

  • Isolation of USB and RS422 Communications.
  • Converter USB to RS422.
