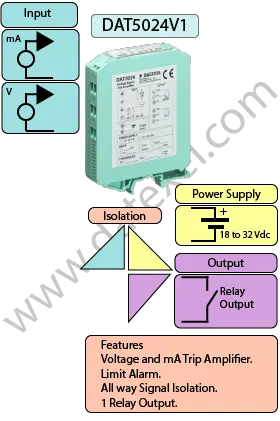

Voltage Trip Amplifier DAT5024V1

General Description.

The DAT5024V1 is a Voltage Din Rail Mount Trip Amplifier. The Voltage input range is set to either one of the following 0-50mV, 0-100mV, 0-250mV, 0-1V or 0-10V. The relay is a single pole double throw and there is an option for a second relay. The input must be selected at the time of ordering. The relay settings are adjustable by the DIP switches and the Potentiometers. Test points for the settings are on the front panel.

The DAT5024V1 has isolation between the Voltage input and power supply of 2000 Vac.
The isolation between the Voltage input and relay contacts is 2000 Vac.
The isolation between power supply and relay contacts is 1500 Vac.
This isolation reduces the effects of ground loops allowing use in Industrial environments. The DAT5024 is in compliance with the standard 89/336/EEC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 20.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
0 to 50mV, 0-100mV, 0-250mV, 0-1V, 0-10V.
OUTPUT
1 Relay
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
120 mA
CONFIGURATION
On Order
ISOLATION
Input-Power Supply 2000Vac 50Hz, 1min.
Input-Contacts 2000Vac 50Hz, 1min.
Power Supply-Contacts 1500Vac 50Hz, 1min.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X L X H
3 1/2" x 4 1/2" x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input Voltage, mV, Current, Thermocouple, RTD's. See Data sheet for range.
Output: Relay 1 SPDT Relay.
Power Supply: 18 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +60°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

Drawings

Input
RTD 3 wire Terminals N and O Compensation M
Resistance 3 wires Terminals N and O Compensation M
Thermocouple Terminals + N and - P
Volts Positive N Negative P
mA Passive Positive O Negative P
mA Active Positive M Negative O
Power supply Positive +V Q Negative -V R
Output
Relay 0 Normally Closed G, Common L, Normally Open I.

Voltage Din Rail Mount Trip Amplifier wiring Diagram
