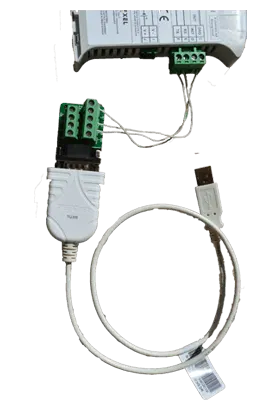

Development RS232 kit
The Development RS232 kit can be used to program the DAT3000 range of Modbus Analog and Digital Input and Output cards. The interface has a USB port connection and a terminal block pre-wired for the DAT3000 range of devices. Instructions Install USB to serial Converter driver supplied with the kit on the PC. Recycle the power of the PC. Install The DAT3000 and DAT10000 software Development which is free to download from the Datexel download page and install. Follow the user guide.
| Temperature rating: | Operative-4°F +145°F -20°C+60°C |
| Storage Temperature -40°F+170°F -40°C+85°C. | |
| Humidity: | (None condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Weight: | 1 oz 30 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. |
| USB port | USB plug |
| Cable to DAT3000 | J2 |
| Terminal C | GND |
| Terminal D | No connection |
| Terminal E | RED |
| Terminal F | BLACK |
