Development RS485 kit

Datexel Product Range
USB Programmer.
• DAT3000 Terminal.
• Pre-wired.
• USB port.
General Description

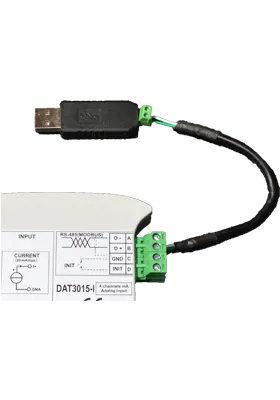

The Development RS485 kit can be used to program the DAT3000 and DAT10000 range of Modbus Analog and Digital Input and Output cards. The interface has a USB port connection and a terminal block pre-wired for the DAT3000 device.

Instructions
Install USB driver supplied with the kit on the PC. Recycle the power of the PC. Install The DAT3000 and DAT10000 software Development which is free to download from the Datexel download page and install. Follow the user guide.


Specifications

Temperature rating: Operative-4°F +145°F -20°C+60°C
  Storage Temperature -40°F+170°F -40°C+85°C.
Humidity: (None condensing) 0-90%.
Housing: Material self-extinguishing.
Weight: 7 oz 160 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
USB port USB plug
Cable to DAT3000 J2
Terminal A D -
Terminal B D+
Applications
