  • mA Limit Alarm DAT5024E1
  • DAT5024 E1 FEATURES

    • Input mA and V.
    • Output One Relay.
    • DIN Rail Mounted.
    • Isolated.

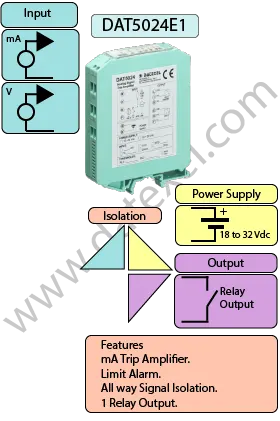

mA Limit Alarm DAT5024E1

General Description.

The DAT5024E1 is a mA Limit Alarm. It can accept a mA or Voltage signal. The inputs are selectable by the use of DIP Switches on the side of the DAT5024E1. On the Current input there is an option to use the auxiliary power supply so both active and passive signals can be used.

The Threshold 1 is programmed as high alarm, while, by dip-switches, it is possible to set the Threshold 2 either as high or low alarm. The trip level of each threshold can be adjusted by the potentiometers and checked by the test-points located on the front of the device. It is possible to adjust the values of the hysteresis level and delay time by potentiometers .

The DAT5024E1 has isolation between the coil and the contacts of 1000Vac and Isolation between the contacts of 1000 Vac. The isolation between the Process input and the power supply is 1500 Vac.
The isolation eliminates the effects of ground loops and provides better protection in industrial applications. The DAT5024E-1 is in compliance with the standard 89/336/EEC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 20.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
Current 4-20mA, 0-20mA,
Voltage 0-10V, 2-10V,0-5V, 1-5V.
OUTPUT
1 Relay
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
120 mA
CONFIGURATION
DIP Switch Selection
ISOLATION
Input-Power Supply 1500Vac 50Hz, 1min.
Input-Contacts 1000Vac 50Hz, 1min.
Power Supply-Contacts 1000Vac 50Hz, 1min.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X L X H
3 1/2" x 4 1/2" x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input mA, V. See Data sheet for range.
Output: Relay 1 SPDT Relay.
Power Supply: 18 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +60°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

Drawings

Input
Volts Positive N Negative P
mA Passive Positive O Negative P
mA Active Positive M Negative O
Power supply Positive +V Q Negative -V R
Output
Relay 0 NC L, Com G, NO I.

Hart Signal Isolator DAT5024 wiring Diagram


Applications

  • mA trip amp.
  • Voltage Limit Alarms.
  • 4-20mA Trip Amplifier.
  • 4-20mA Limit Alarms.
