mV, mA, Voltage Converter DAT207 3W

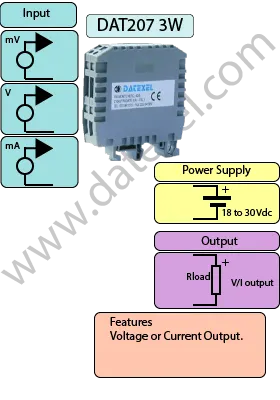

General Description

The DAT207 3 W is a Signal Converter that converts a mV, mA and Voltages to Voltage or current output. There are 3 versions, Version A is 0-200 mV with a minimum span of 5 mV. Version B is up to 0-20V with a minimum span of 200mV and version C is a mA input with a range of 0-50mA with a minimum span of 5 mA.

The output from the DAT207 3W ether 4-20mA , 0-20mA or 0-10V which is proportional to the input.

The power supply can be from 18 Vdc to 30 Vdc.

Span and zero adjustment screws are provided on top of the converter for ease of calibration and maintenance.

The DAT207 is in compliance with the standard 89/336/EEC on the Electromagnetic Compatibility.

It is housed in a plastic enclosure of 17 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
DAT207A 3W 0-5 up to 0-200 mV.
DAT207B 3W 0-200mV up to 0-20V.
DAT207C 3W 0-5mA up to 0-50mA.
OUTPUT
0-10 V, 0-20mA, 4-20mA.
POWER SUPPLY
Power Supply Voltage 10-32VDC.

CURRENT CONSUMPTION
3.5.
CONFIGURATION
Front panel.
Isolation
None.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H X L
11/16" x 2 1/2" x 2 1/2"
17 x 62x x 64 mm
Weight 2 oz 60 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input:
DAT207 A 3 W 0-5 mV up to 0-200mV
DAT207 B 3 W 0-200 mV up to 0-20V
DAT207 C 3 W 0-5 mA up to 0-50mA
Output: 4-20mA, 0-20mA or 0-10V
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (None condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: W 11/16" L 2 1/2" H 2 1/2" 17 mm X 62 mm x 64mm
Weight: 2 oz 60 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

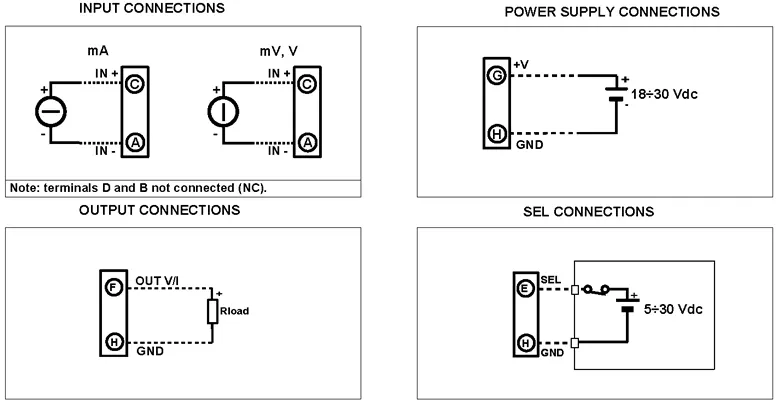

Drawings

Input
mV and Voltage Positive C Negative A
mA Positive C Negative A
Power Supply Positive G Negative H
Output
mA Positive G Negative H
Voltage Positive G Negative H
Hold Reading Positive E Negative H

DAT207 wiring Diagram.


Applications

  • mV Converter.
  • Voltage Converter.
  • mA Converter.
