  • DC Current Transmitter DAT5023Idc C.
  • DC Current Transducer with cable.
  • DAT5023IAC C FEATURES

    • DC Current converter.
    • DIP Switch Programmable.
    • Input 0-40Amp dc.
    • Input 0-50Amp dc.
    • Input 0-60Amp dc.
    • Output Current, Voltage .
    • DIN Rail Mounted.

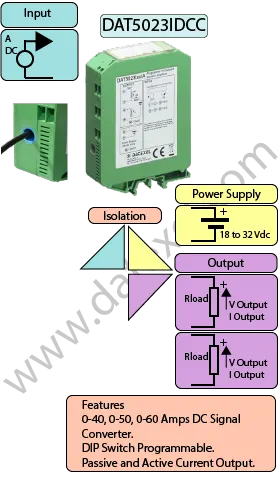

DC Current Transducer DAT5023Idc C

General Description

The DC current Transducer DAT5023Idc C is designed to convert 0-40A, 0-50A or 0-60A in to a current or Voltage signal. The output signal is selectable from a 4-20mA, 0-20mA, 0-10V, 2-10V, 0-5 or 1-5V.

The user can program the input and output ranges by the DIP-switches located on the side of the device.

The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of device.

The DAT5023Idc provides on the output side an auxiliary supply source to connect both active and passive loads.

The device is available in other input ranges.

DAT5023 I dc version A 0-5Amp, 0-10Amp.

DAT5023 I dc version B 0-20Amp, 0-25Amp, 0-30Amp.

The DAT5023Idc is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.

The 2000 Vac isolation between Input, power supply and output eliminates the effects of all ground loops and allows the use of the converter in heavy environmental conditions found in industrial applications.

The DAT5023Idc provides a power supply on the output side so both active and passive loads can be connected.

The DAT5023Idc is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

The DAT5023Idc is housed in a plastic enclosure of 27.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
Current 0-40 Amp, 0-50 Amp, 0-60 Amp.
OUTPUT
Current 4-20mA, 0-20mA.
Voltage 0-10V, 0-5V, 2-10V, 1-5V.
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
35 mA
CONFIGURATION
DIP Switch Configurable.
ISOLATION
Between Input/Output/Power Supply 2000Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
3 1/2" x 4 1/2 " x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: Current 0-40 Amp, 0-50 Amp, 0-60 Amp.
Output: Voltage 0-10V, 0-5V, 2-10V, 1-5V.
Current 4-20mA, 0-20mA.
Power Supply: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable

Drawings

Input:
Current In and out
Output:
Voltage Positive N Negative M
Current Passive Positive P Negative M
Current Active Positive O Negative P
Power Supply +Vdc Q GND1 R

DC Current converter wiring Diagram.


Applications

  • DC Current converter.
  • 0 to 40 Amps to 4-20mA.
  • 0 to 50 Amps to 4-20mA.
  • 0 to 60 Amps to 4-20mA.
