  • Hazardous Area Current loop Repeater.
  • DAT5030IS A FEATURES

    • Protection mode II (1) G D [Ex ia] IIC-[Ex iaD]
    • Input mA, and Volts.
    • Output 4-20mA and 0-10V
    • Current Loop Repeater.
    • DIP Switch Configurable.
    • DIN Rail Mounted.

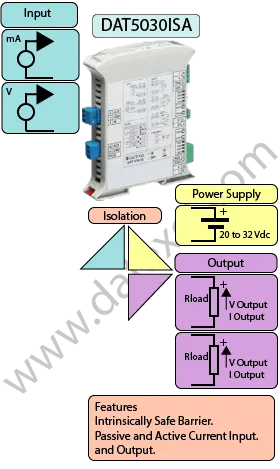

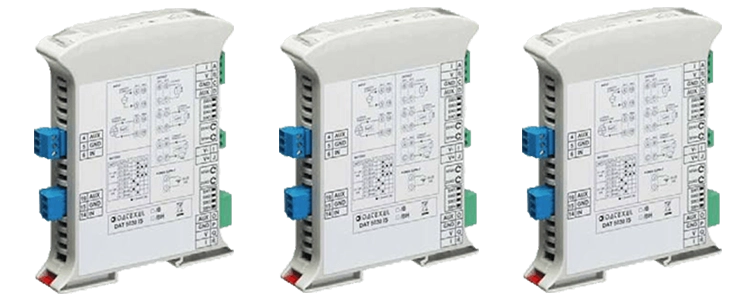

Intrinsic Safety Barrier loop Repeater 4-20mA DAT5030IS A

General Description

The Intrinsic Safety Barrier current loop repeater DAT5030ISA is a DIN Rail mount signal repeater. The input is current loop and output can be either Current loop or Voltage. The input can be Active or Passive power supply meaning the excitation voltage can be supplied by the field equipment or the loop can be powered be the DAT5030ISA. Also the output can either be Active or Passive but with the additional output ranges of 0-10V or 2-10V. There is also an auxiliary power supply of 15 Volts on the input side and an auxiliary power supply of 12 Volt on the output side.

The DAT5030ISA is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.

The DAT5030ISA also provides an isolation of 2000Vac between the input and output signal, and an isolation of 1500Vac between the power supply and the output signal.

This eliminates the effects of any ground loops and allows the use of the transmitter in heavy environmental conditions found in industrial applications. The DAT5030ISA is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

The DAT5030ISA is housed in a plastic enclosure of 22.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
Current 4-20mA, 0-20mA.
OUTPUT
Current 4-20mA, 0-20mA.
Voltage 0-10V, 0-5V, 2-10V, 1-5V.
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
80 to 120 mA
CONFIGURATION
DIP Switch Configurable.
ISOLATION
Between Input/Output/Power Supply 2000Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W x H x T
3 1/2" x 4 1/2 " x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: 4-20mA, 0-20mA..
Output: Voltage 0-10V, 2-10V.
Current 4-20mA, 0-20mA.
Power Supply: 18 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable

Drawings

Input
Channel 1
mA Passive Terminals + 4 and - 6
mA Active Terminals + 6 and - 5
Output
Channel 1
mA Active Terminals + D and - A
mA Passive Terminals + A and - C
Voltage Terminals + B and - C
Power supply Positive +V J Negative -V I

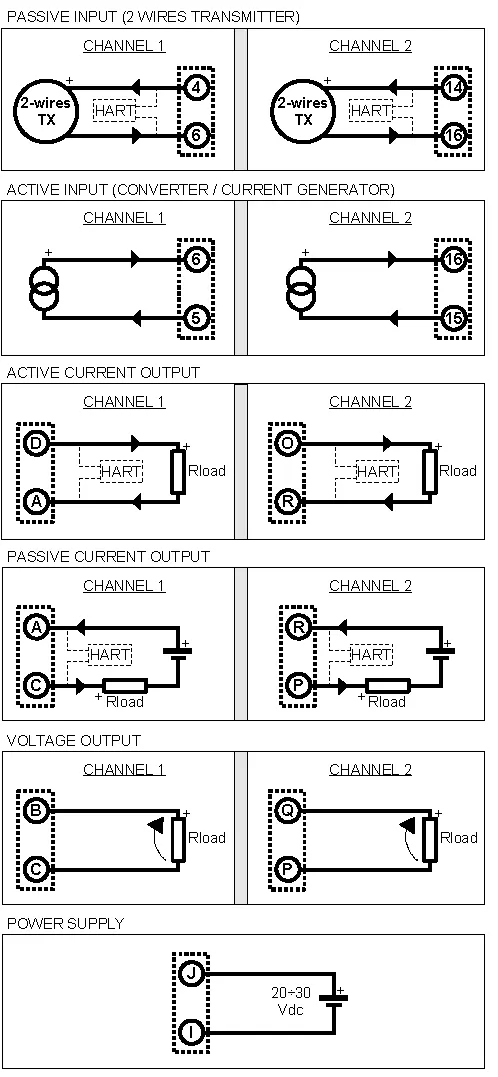

Intrinsic Safety Barrier DAT5030ISA wiring Diagram.


Applications

  • Loop Repeater IS Safety barrier.
  • ATEX Safety barrier.
