  • Isolated Head Mounted Temperature Transmitter DAT1066.
  • DAT1066 FEATURES

    • Isolated.
    • Input Thermocouples.
    • RTD's Pt100, Pt1000, Ni100 and Ni1000.
    • Potentiometer.
    • Resistance.
    • PC Programmable
    • Up Scale, Down scale Burn Out.
    • Head Mounted

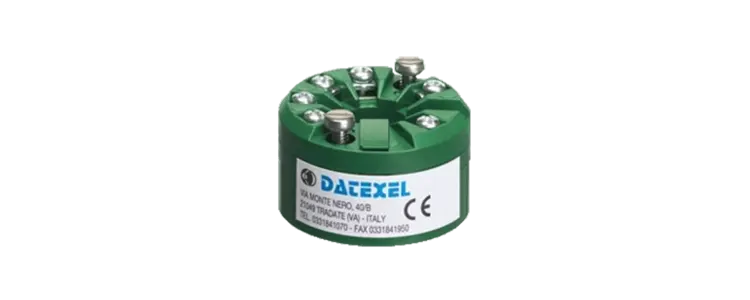

Head Mount Temperature converter DAT1066

General Description.

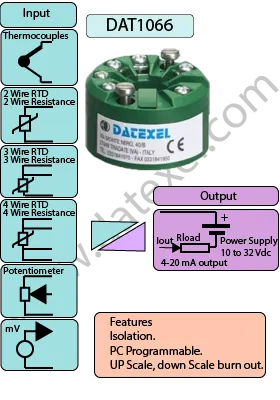

The DAT1066 Isolated Temperature Transmitter is a Thermocouple Head Mounted Temperature Transmitter. The output is 4-20mA. The input accepts Thermocouples, RTD's, mV's, Potentiometers and resistance inputs. The DAT1135 is programmable by a PC using the Prodat and the DATASOFT software. The sensor, range, zero and linearization are programmable. The input is measured, linearized and converted to the industrial standard. The RTD and resistance input have the added feature of selecting 3 or 4 wire for higher accuracy. There is a burn out failure alarm that can be programmed to drive the output signal High and Low.

The input on the DAT1066 has a high range of tolerance and the DAT1066 can accept any voltage between 18 V and 32 V.

The thermocouple selection type is J, K, S, R, B, E, T and N.

The RTD sensor is selectable for Pt100, Pt1000, Ni100 or Ni1000.

The resistance input is selectable from 0-200, 0-500, 0-2000 Ohms.

The mV input is selectable from -100mV to 700mV with a minimum span of 2 mV.

The Potentiometer can accept resistance in the range of 0-200 Ohms, 200-500 Ohms and 0.5 to 2 k ohms.

The RTD and resistance can be 2 wire or use compensation wire to improve accuracy i.e. 3 or 4 wire. There is an option to program the burn out failure alarm on the 4-20mA signal to High (20mA) or Low (4mA). The power supply to the Temperature Transmitter has a high range of tolerance and can accept voltage between 10V and 32 V.

INPUT
Thermocouple.
RTD Pt100, Pt1000, Ni100, Ni1000.
Resistance 0-200 0-500 0-2kohms
mV -100 to 700 mV
Potentiometer up to 2 k ohms
OUTPUT
Current 4-20mA.
POWER SUPPLY
Power Supply Voltage 18-32Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
10 mA
CONFIGURATION
PC Programmable.
ISOLATION
Between Input and Output
1500 Vac, 50 Hz, 1 min.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H
1 3/4" x 1"
43 x 24 mm
Weight 1 1/2 oz 50 g
TEMPERATURE
Operating Temperature -4°F +158°F -20°C +70°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: Thermocouple Type J, K, S, R, B, E, T and N.
  RTD Pt100, Pt1000, Ni100, Ni1000, mV, Potentiometer,
  Resistance. See Data sheet for range.
Output: 4-20mA.
Power Supply: 18 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable

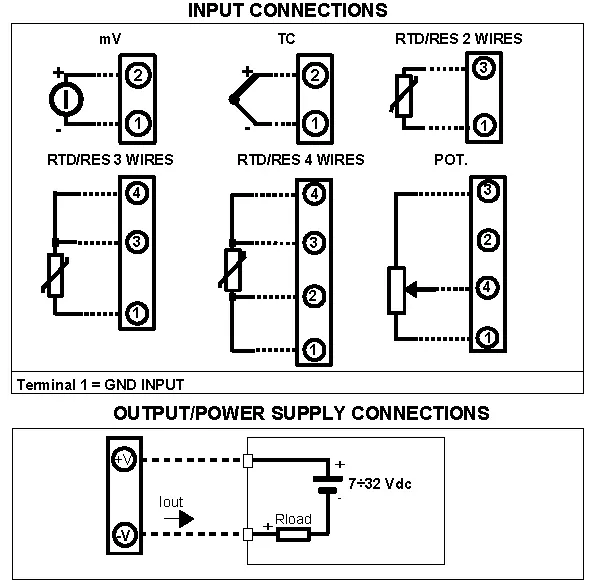

Drawings

Power supply and Output 18 -30Vdc Positive +V Negative -V
Input
Thermocouple Positive 2 Negative 1
mV Positive 2 Negative 1
RTD and Resistance 2 wires Terminals 1 and 3
RTD and Resistance 3 wires Terminal 1 and 3 Common 4
RTD and Resistance 4 wires Terminal 1 Comp 2 and Terminal 3 Comp 4
Potentiometer Terminal 1 and 3 Wiper 4

Head Mount Temperature Transmitter DAT1066


Applications

  • Isolated Thermocouple Transmitter.
  • Head Mount Temperature Transmitter.
  • Isolated Pt100 Transmitter .
  • Isolated Resistance Transmitter.
