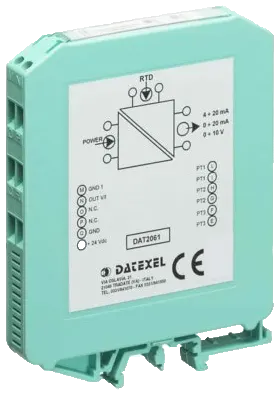

Isolated RTD Temperature converter DAT2061

General Description

The Isolated RTD converter DAT2061 is a Din Rail mount isolated temperature converter with DIP Switch programmability.

The DAT2061 is accurate to 0.1% full scale and has less than 0.02%/°f thermal drift.

It is possible to set the minimum and maximum values of the input and output ranges in any point of the scale, keeping the minimum span shown in the Data Sheet.

It is possible to connect on the input both 3 wires and 2 wires Pt100.

The DAT2061 is isolated between the power supply and the input/output to 2000V and eliminates the effects of any ground loops and allows the use of the transmitter in heavy environmental conditions found in industrial applications.

The DAT2061 is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

The DAT2061 is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

The calibration of zero and span values is made by the ZERO and SPAN potentiometers located on the top of device.

INPUT
RTD.
OUTPUT
Current 4-20mA, 0-20mA.
Voltage 0-10V
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
20 mA
CONFIGURATION
DIP Switch Programmable.
ISOLATION
2000 Vac Between Input/Output/Power Supply.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H
3 1/2" x 4 1/2" x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input:

RTD.

See Data sheet for range.

Output: 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: W x L x H inch 3 1/2 x 4 1/2 x 1/2, mm 90 x 112 x 12.5.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: DIP Switch Configurable

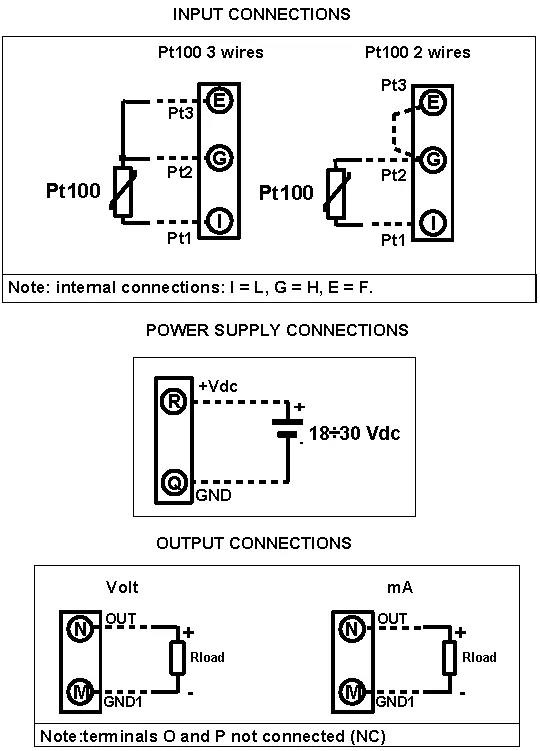

Drawings

Input
RTD 2 wire Terminals G and I Short E
RTD 3 wire Terminals I and G Compensation E
Power supply Positive +V R Negative -V Q
Output Current Positive +V N Negative -V M
Output Voltage Positive +V N Negative -V M

Isolated RTD Temperature converter DAT2061.


Applications

  • Isolated RTD converter.
  • DIN Rail Mount Isolated Pt100 Temperature converter.
