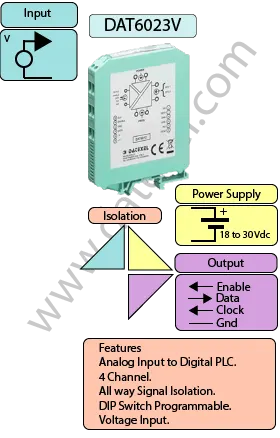

Voltage to Digital PLC Input Module, DAT6023-V

General Description

The DATEXEL DAT6023-V converts Voltage and mV signals from -10V to +10V to a digital signal that can be read by a digital PLC.

The DATEXEL DAT6000 series amplifies, linearizes, Isolator, filters and converts the analog signals to a high resolution digital signal, by few and simple instructions downloaded into any PLC. It is possible to acquire more analog signals on one digital input.

The digital signal can be connected to any input of the PLC. The digital signal is composed of a series of 16 bits “word” containing the value of the analog inputs to acquire. The PLC controls the data transmission by a clock signal (CLK) generated from one of its output ports used to ask the device after the enabling of transmission by the enable signal (ENABLE). If the enable signal is high, at each rising edge of clock, the device will provide on the data line (DATA) one of the bits that composes the reading word.

Every cycle of reading is composed of 1 synchronism bit and 16 bits for each analog signal; this means that every reading is composed of 33 bits.

The rising edge of the ENABLE signal, managed from the controller, resets the cycle of reading and allows to avoid the reading of the unused input channels; the ENABLE signal can be used also to multiplex more devices to the same PLC's digital input.

The 2000 Vac isolation between inputs, power supply and data lines eliminates the effects of all ground loops eventually existing and allows the use of the converter in heavy environmental conditions found in industrial applications. The DAT 6023-V is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.

The DATEXEL DAT6000 series is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
4 X 0-10V, +/-10V.
OUTPUT
16 Bit.
POWER SUPPLY
Power Supply Voltage 20-30VDC
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
30 mA
CONFIGURATION
DIP Switch Configurable.
Isolation
Between Input/Output/Power Supply 1500Vac.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X H X L
3 1/2" x 4 1/2 " x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input: Voltage -10V to +10V.
Output: 16 Bit.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative- 4°F +158°F - 20°C +70°C
  Temperature Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity: (none Condensing) 0-90%.
Housing: Material Self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable

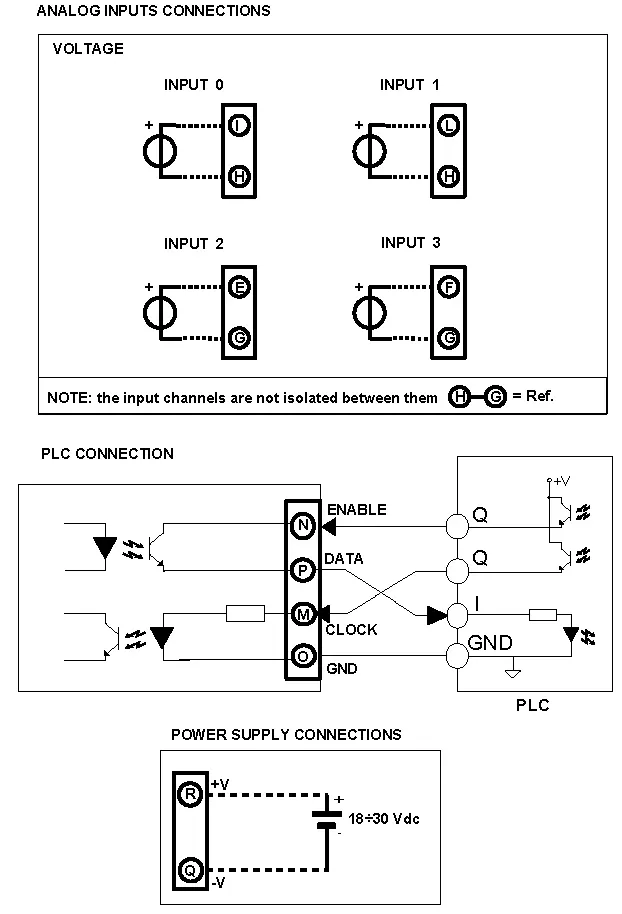

Drawings

Input
Channel 0
Voltage Positive I Negative H
Channel 1
Voltage Positive L Negative H
Channel 2
Voltage Positive E Negative G
Channel 3
Voltage Positive F Negative G
PLC Connection
Enable Terminal N
Data Terminal P
Clock Terminal M
GND Terminal O
Output and Power supply Positive R Negative Q

DAT6023-V wiring Diagram.


Applications

  • 4 Channel 0-10V Converter.
  • 4 Channel +/-10V to digital PLC.
