  • Process Limit Alarm
  • DAT5024 E2 FEATURES

    • Input Current and Voltage.
    • Output Two Relays.
    • DIN Rail Mounted.
    • Isolated.

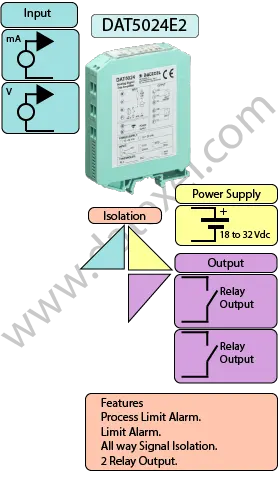

Process Limit Alarm DAT5024E2

General Description.

The DAT5024E2 is a Process Limit Alarm, Din Rail mount Limit Alarm. It can accept a mA or Voltage signal. The inputs are selectable by the use of DIP Switches on the side of the DAT5024E2. On the Current input there is an option to use the auxiliary power supply so both active and passive signals can be used.



INPUT
Voltage 0-10V, 2-10V,0-5V, 1-5V.
Current 4-20mA, 0-20mA,
OUTPUT
2 Relay
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
120 mA
CONFIGURATION
DIP Switch Selection
ISOLATION
Input-Power Supply 1500Vac 50Hz, 1min.
Input-Contacts 1000Vac 50Hz, 1min.
Power Supply-Contacts 1000Vac 50Hz, 1min.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X L X H
3 1/2" x 4 1/2" x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input mA, V. See Data sheet for range.
Output: Relay 2 SPDT Relay.
Power Supply: 18 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +60°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

Drawings

Input
Volts Positive N Negative P
mA Passive Positive O Negative P
mA Active Positive M Negative O
Power supply Positive +V Q Negative -V R
Output
Relay 0 NC L, Com G, NO I.
Relay 1 NC E, Com F, NO H.



Process Limit Alarm  wiring Diagram


Applications

  • mA trip amp.
  • Voltage Limit Alarms.
  • 4-20mA Trip Amplifier.
  • 4-20mA Limit Alarms.
