  • mV Trip Amp DAT5024T2
  • DAT5024 T 2 FEATURES

    • mV Input.
    • Thermocouple Input.
    • Output Two Relay.
    • DIN Rail Mounted.
    • Isolated.

mV Trip Amp DAT5024T2

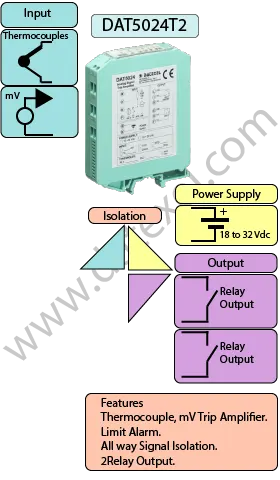

General Description.

The DAT5024T2 is a DIN Rail mount mV Trip Amplifier. It can accept mV inputs and Thermocouples. The Threshold 1 is programmed as high alarm, while, by dip-switches, it is possible to set the Threshold 2 either as high or low alarm.The trip level of each threshold can be adjusted by the potentiometers and checked by the test-points located on the front of the device. It is possible to adjust the values of the hysteresis level and delay time by potentiometers.

The DAT5024T2 has isolation between input and power supply up to 2000 Vac.
The isolation between input and contacts of relays is 2000 Vac.
The isolation between the power supply and contacts of relays is 1500 Vac.
This isolation eliminates the effects of ground loops and allows the DAT5024T2 to be used in industrial applications. The DAT5024T2 is in compliance with the standard 89/336/EEC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 20.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

INPUT
0 to 50mV, 0-100mV, 0-250mV, 0-1V, 0-10V.
OUTPUT
2 Relays
POWER SUPPLY
Power Supply Voltage 18-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION
120 mA
CONFIGURATION
On Order
ISOLATION
Input-Power Supply 2000Vac 50Hz, 1min.
Input-Contacts 2000Vac 50Hz, 1min.
Power Supply-Contacts 1500Vac 50Hz, 1min.
EMC
For Industrial environments
Immunity EN 61000-6-2
Emission EN 6100-6-4
HOUSING
Material self-extinguishing
Dimensions W X L X H
3 1/2" x 4 1/2" x 1/2"
90 x 112x x 12.5 mm
Weight 3 oz 90 g
TEMPERATURE
Operating Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F-40°C +85°C
Humidity (non condensing) 0-90%



Specifications

Input mV, Thermocouples, RTD's, mA, V. See Data sheet for range.
Output: Relay 2 SPDT Relay.
Power Supply: 18 to 32 Vdc
Temperature rating: Operative- 4°F +158°F - 20°C +60°C
  Temperature Storage Temperature - 40°F +170°F - 40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: Diameter 1 3/4 " Height 15/16 " 42 mm X 24mm
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.

Drawings

Input
RTD 3 wire Terminals N and O Compensation M
Resistance 3 wires Terminals N and O Compensation M
Thermocouple Terminals + N and - P
Volts Positive N Negative P
mA Passive Positive O Negative P
mA Active Positive M Negative O
Power supply Positive +V Q Negative -V R
Output
Relay 0 Normally Closed G, Common L, Normally Open I.
Relay 1 Normally Closed F, Common E, Normally Open H.

mV Trip Amp DAT5024T2 wiring Diagram


Applications

  • Thermocouple trip amp.
  • mV Limit Alarms.
  • K Type Trip Amplifier.
  • B Type Limit Alarms.
