4 to 20mA Potentiometer Transmitter.

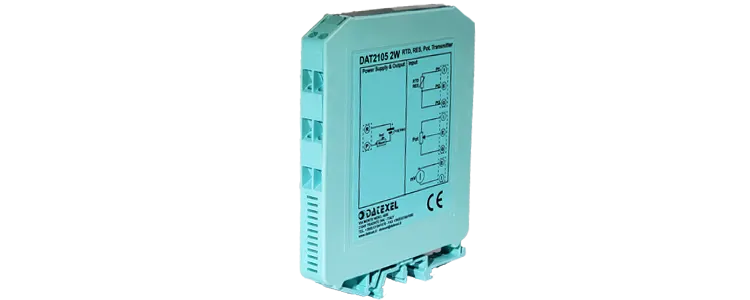

DAT2105-2W

4 to 20mA Potentiometer Transmitter.

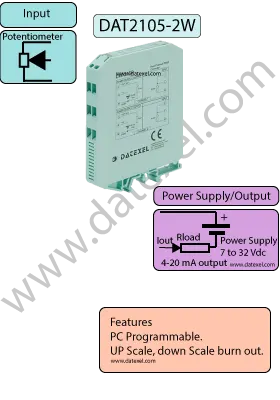

4 to 20mA Potentiometer Transmitter
• Input Potentiometer.
• Output 4 to 20 mA.
General Description

The DAT2105-2W is a versatile and highly accurate potentiometer to 4-20mA converter, designed for a wide range of industrial applications. It features configurable inputs and outputs, ensuring precise and reliable performance.

Key Features

  • Configurable Input: Supports RTD, mV, resistance, and potentiometer inputs.
  • 4-20mA Output: Configurable output on the current loop.
  • Damping Function: Reduces fast variations on the input signal with a programmable filter up to 30 seconds.
  • PC Configurable: Easily configured by a personal computer using the CVPROG cable.
  • High Accuracy: Ensures reliable and stable performance over time and temperature changes.
  • On-field Reconfigurable: Device can be reconfigured on-site.
  • Micro-USB Configuration: Configure the device without a power supply via Micro-USB.
  • Output Adjustment: Optional potentiometers for manual output signal adjustment (POT option).
  • EMC Compliant: CE marked for electromagnetic compatibility.
  • DIN Rail Mounting: Suitable for mounting in compliance with EN-50022 and EN-50035 standards.
INPUT OUTPUT POWER SUPPLY
Potentiometer. Current 4-20mA Power Supply Voltage 7-32Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
3 mA PC Programmable None
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/ " Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x 12.5 mm Humidity (non condensing) 0-90%
Weight 3  oz 90 g
DAT2105-2W Datasheet
Buy Online
Applications
Drawings
Signal Conditioners

Functionality

The DAT2105-2W performs several essential functions:

  • Measures and linearizes the temperature characteristic of RTD sensors.
  • Converts linear resistance variations.
  • Converts voltage signals, including those from potentiometers connected to its input.

The measured values are transmitted via the 4-20mA output loop, based on the configured settings. The device ensures high accuracy and performance stability over time and across temperature variations.

Configuration

Configuration of the DAT2105-2W is straightforward and must be done without powering the device. Use the CVPROG cable to connect to the Micro-USB port on the front side of the transmitter. Configuration is performed using the DATAPRO software, developed by DATEXEL, compatible with Windows™ operating systems.

For resistance and RTD sensors, the device allows for 3-wire cable compensation. Users can set minimum and maximum values for input and output ranges, maintaining the minimum span specified in the datasheet. An alarm option for signal interruption (burn-out) is available, allowing the output value to be set high or low out of scale.

Additional Features

  • Damping Function: Programmable filter up to 30 seconds to smooth out fast input signal variations.
  • Manual Adjustment: Optional front-side potentiometers for on-field signal adjustment (-POT option).
  • Compact Design: Housed in a 12.5 mm thick plastic enclosure, suitable for DIN rail mounting per EN-50022 and EN-50035 standards.

User Instructions

Output Measurement: The 4-20mA output signal can be measured in the power loop, as detailed in the "Output/Power Supply Connection" section.
Input Connections: Ensure proper connections as shown in the "Input Connection" section.
Device Configuration: Refer to the "Configuration" section for detailed instructions.

The DAT2105-2W is an ideal solution for applications requiring reliable conversion of potentiometer signals to a standardized 4-20mA output, ensuring precise control and monitoring in industrial environments.


Specifications

Input: Up to 50KOhm Potentiometer.
Output: 4-20mA.
Power Supply: 7 to 32 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 3 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
Storage Temperature rating:  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
Immunity:  EN 61000-6-2.
Emission:  EN 61000-6-4.
Configuration: PC Configurable.
Drawings

Potentiometer Input Connections

Input. Positive Negative Wiper
Potentiometer G I E
Potentiometer Input for DAT2105-2W

4-20 mA Output Connections

Output. Positive Negative
4-20 mA R P
Power Supply and 4-20 mA Output for DAT2105-2W
