Comprehensive Range of Head Mount, DIN Rail, and OEM Temperature Transmitters"

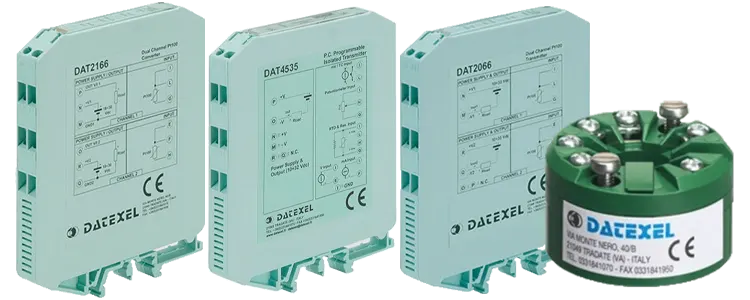

Datexel range of Temperature Transmitters.

What is a Temperature Transmitter?

A temperature transmitter converts the signal from a temperature probe—such as an RTD or thermocouple—into a two-wire 4-20mA output signal. In contrast, a temperature converter requires a separate power supply and is typically a three- or four-wire device.

The transmitter draws power from the 4-20mA loop itself, using less than 4mA. While converters can output either current or voltage, transmitters provide only a 4-20mA signal, making them a more efficient option for industrial control systems.

Datexel temperature transmitters accept input from thermocouples, RTDs, millivolt sources, resistances, and potentiometers. They play a critical role in accurate and reliable temperature measurement in demanding industrial environments.

Most of Datexel’s head-mounted models are temperature transmitters, including the popular DAT1010 and DAT1015. For voltage output applications, Datexel offers the DAT1135 Head Mount Temperature Converter, which provides a 0-10V output.

Datexel manufactures a full range of temperature transmitters, including head mount (hockey puck) types, DIN rail mount, and OEM board-level versions. Options include PC programmable, DIP switch configurable, isolated, and low-cost OEM designs.

Temperature Transmitters
Head Mounted Temperature Transmitter Modbus Temperature Transmitter

Head Mounted Temperature Transmitters.


  • PC Programmable with USB Port.
  • No need for power whilst programming.
  • Options for Isolated output.
  • Input Types:
    • Thermocouple
    • RTD
    • Resistance
    • Potentiometer
    • mV
  • Output Signal:
    • 4-20mA
    • DAT1135 offers a 0-10 VDC output
Head Mounted RS485 Modbus RTU converter. Modbus Temperature Transmitter

Head Mounted RS485 Modbus RTU converter.


  • PC Programmable with DAT3000-10000 Software
  • Isolated Output
  • Input Types:
    • Thermocouple
    • RTD
    • Resistance
    • Potentiometer
    • mV
  • Output:
    • RS485 Modbus RTU
DIN Rail Temperature Transmitters DIN Rail Temperature Transmitter

DIN Rail Temperature Transmitters.


  • PC Programmable with USB Port.
  • DIP switch programmable.
  • No need for power whilst programming.
  • Options for Isolated output.
  • Input Types:
    • Thermocouple
    • RTD
    • Resistance
    • Potentiometer
    • mV
  • Output Signal:
    • 4-20mA, 0-20mA and others
    • 0-10 VDC and others
OEM Temperature Transmitter OEM Temperature Transmitter

OEM Temperature Transmitters. Small Printed Circuit Boards that can fit in other devices.

  • PC Programmable with USB Port.
  • The DAT1010-OEM has a RTD, Potentiometer and mV input.
  • The DAT1015-OEM is similar to the DAT1010 but also accepts and linearizies Thermocouples.
  • PC programmable
  • Input Types:
    • Thermocouple
    • RTD
    • Resistance
    • Potentiometer
    • mV
  • Output Signal:
    • 4-20mA

Datexel temperature transmitters have many options, such as PC-programmable or DIP-switching, isolated, and linearized.
The Datexel range includes features like direct and inverse outputs, high and low sensor burnout, and high-speed response output. With the programming software, you can run in measure mode and observe the input and output simultaneously.
Below is a list of the various input signals from a range of Temperature Sensors and Temperature Probes.
Thermocouples J Type Thermocouples
  K Type Thermocouples
  S Type Thermocouples
  R Type Thermocouples
  B Type Thermocouples
  E Type Thermocouples
  T Type Thermocouples
  N Type Thermocouples
Thermistors PTC
  NTC
RTD 2,3,4 Wire Pt 100
  Pt1000
  Ni 100
  Ni 1000
Voltage mV
Potentiometer Ohms
Resistance Ohms
Below is a list of the various outputs from a range of Temperature Sensors and Temperature Probes.
Current
Standard 4-20mA
Direct 0-20mA Minimum span 4mA
Inverse 20-0 mA Minimum span 4 mA
Voltage
Standard 0-10V, 1-5V, 0-1 V
Direct 0-10V Min span 1V
Inverse 10-0V Min span 1 V
Digital
Modbus RTU RS485
Explore Datexel's extensive range of head mount and DIN rail temperature transmitters. We design our high-quality devices to meet various industrial needs, ensuring precise and reliable temperature measurements.
With advanced features such as PC programmability, DIP switch options, Programming with no power, and isolation, our transmitters provide exceptional performance and flexibility.
Datexel focuses on innovation, like the DAT1135 temperature converter with a 0-10VDC output, showcasing its dedication to new ideas. Datexel provides different ways to mount their products to meet your specific needs. These options include head mount, DIN rail mount, and OEM printed circuit board versions.
Trust Datexel for all your temperature monitoring and control needs, ensuring accuracy, efficiency, and reliability.

Frequently Asked Questions

A temperature transmitter converts signals from a sensor such as a thermocouple or RTD into a standard 4-20mA current output, ideal for industrial process control.

Datexel offers head-mount, DIN rail, and OEM board-mount temperature transmitters for various industrial applications.

Yes, most Datexel transmitters can be programmed via PC without requiring an external power source.

A temperature transmitter outputs a 4-20mA signal and is powered through the current loop (2-wire), whereas a temperature converter may require a separate power supply and can output voltage or current. See our DAT1135 converter for voltage applications.
