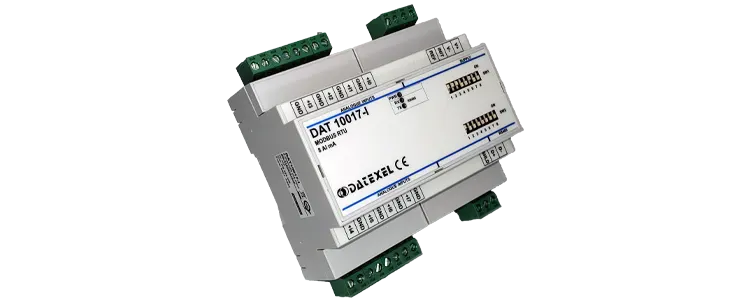

4-20mA to Modbus RTU.
DAT10017-I

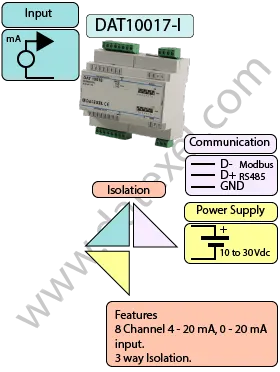

The 4-20mA to Modbus RTU DAT10017-I is an 8 channel input device that accepts from 4-20 mA 0-20 mA and -20 to +20 mA inputs. There is 3 way Isolation between the Input, Output and power supply. The DAT10017-I can work on a Modbus RTU and a Modbus ASCII network up to a Baud rate of 115.2 Kbps. It can be programmed by DIP Switches or programmed by a PC and has local indication for power and Communication.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 4-20 mA, 0-20 mA. | Modbus RTU | Power Supply Voltage 10-30Vdc |
| -20 - +20 mA. | Modbus ASCII | Reverse polarity protection 60Vdc |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 35 and 45 mA | DIP Switch | Between Input/Comms/Power Supply 1500Vac. |
| PC Programmable | ||
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature 14°F +140°F -10°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 106 x 112x x 57 mm | Humidity (non condensing) 0-90% |
| Weight 7 oz 200 g |
| Input: | |
| Current | 4 Channels. 4-20 mA, 0-20 mA, -20 - +20 mA |
| Communication: | |
| RS485: | Modbus RTU, Modbus ASCII. |
| Power Supply: | 10 - 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | 30 mA to 45 mA. |
| Temperature rating: | Operative Temperature 14°F +140°F, - 10°C +60°C Storage Temperature - 40°F +185°F, - 40°C +85°C. |
| Humidity: | (not condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | W x L x H 4 1/4X 4 1/2 X 2 1/4 inch, 106 x 112 x 57mm. |
| Weight: | 7 oz 200 g. |
| EMC. | For industrial environments. |
| Immunity: | EN 61000-6-2. |
| Emission: | EN 61000-6-4. |
| Isolation: | Between Modbus Master, Input, Power supply 1500Vac, 50Hz, 1 Minute. |
| Configuration: | PC Configurable, DIP Switch. |

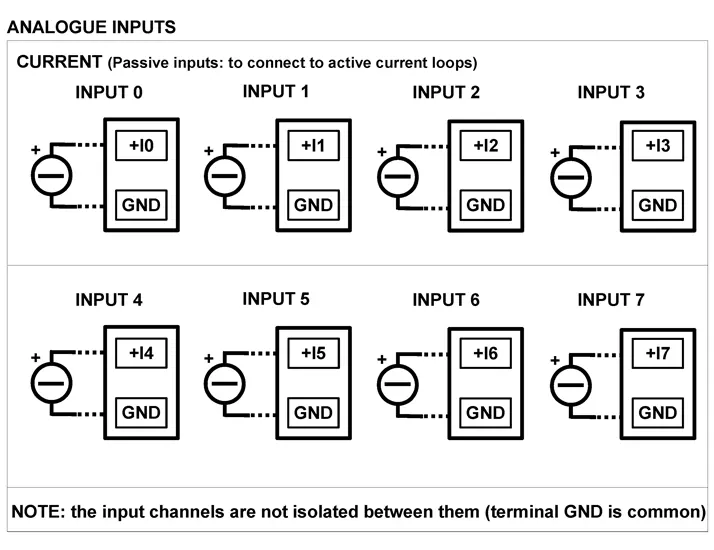

| Current Input 0 | Positive +I0 Negative GND |
| Current Input 1 | Positive +I1 Negative GND |
| Current Input 2 | Positive +I2 Negative GND |
| Current Input 3 | Positive +I3 Negative GND |
| Current Input 4 | Positive +I4 Negative GND |
| Current Input 5 | Positive +I5 Negative GND |
| Current Input 6 | Positive +I6 Negative GND |
| Current Input 7 | Positive +I7 Negative GND |
| Power Supply (18-30Vdc). | Positive V+ Negative V-. |
| RS 485 Slave | Positive (D+)B Negative (D-) A GND C |
| Init | Pin Init Ref |
