8 Channel Thermocouple to Modbus RTU.

DAT10018

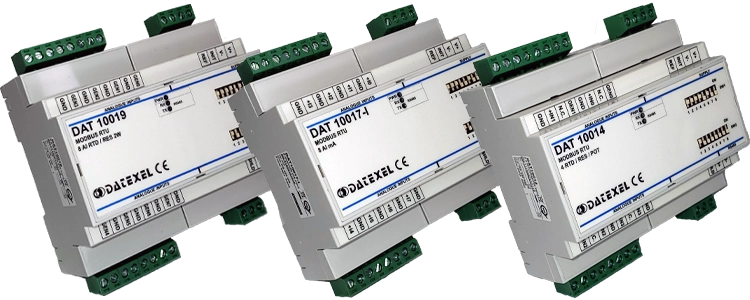

Datexel DAT10000 Product Range
Buy Online

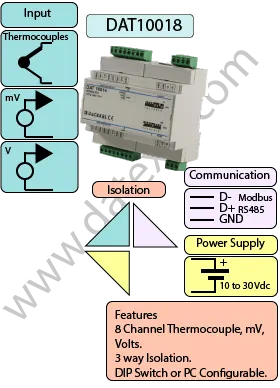

8 Channel Thermocouple to Modbus RTU DAT10018.
• CE.
• Modbus RTU Slave.
• 8 Thermocouple, mV input.
• RS485 Communication.
• Isolation.
General Description

The DAT10018 Modbus RTU Converter is an 8-channel input module designed to acquire signals from thermocouples and millivolt sources and make them available on a Modbus RTU or Modbus ASCII network. It is the higher-density version of the DAT10016, offering twice the number of channels for applications that require more measurement points.

The DAT10018 supports a wide range of thermocouple types, including K, J, R, S, B, E, T, and N. For millivolt signals, it accepts ranges of ±50 mV, ±100 mV, and ±250 mV, providing flexibility for low-level voltage measurements in addition to thermocouple inputs.

The device provides 1500 Vac galvanic isolation between inputs, outputs, and power supply, eliminating ground loops and ensuring safe operation in harsh industrial environments. The power supply input also features reverse polarity protection to safeguard against wiring errors.

INPUT OUTPUT POWER SUPPLY
Thermocouple, mV. Modbus RTU RS485 Power Supply Voltage 10-30Vdc
Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 30 and 45 mA PC Programmable Between Input/Comms/Power Supply 1500Vac.
DIP Switch
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 106 x 112x x 57 mm Humidity (non condensing) 0-90%
Weight 7 oz 200 g

Specifications
Input:
Thermocouples 8 Channels K, J, R, S, B, E, T and N.
mV -50 mV to +50 mV, -100 mV to +100 mV, and -250 mV to +250 mV.
Communication:
RS485: Modbus RTU, Modbus ASCII.
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA to 45 mA.
Temperature rating: Operative Temperature 14°F +140°F, - 10°C +60°C Storage Temperature - 40°F +185°F, - 40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 4 1/4X 4 1/2 X 2 1/4 inch, 106 x 112 x 57mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Input, Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable, DIP Switch.
Drawings

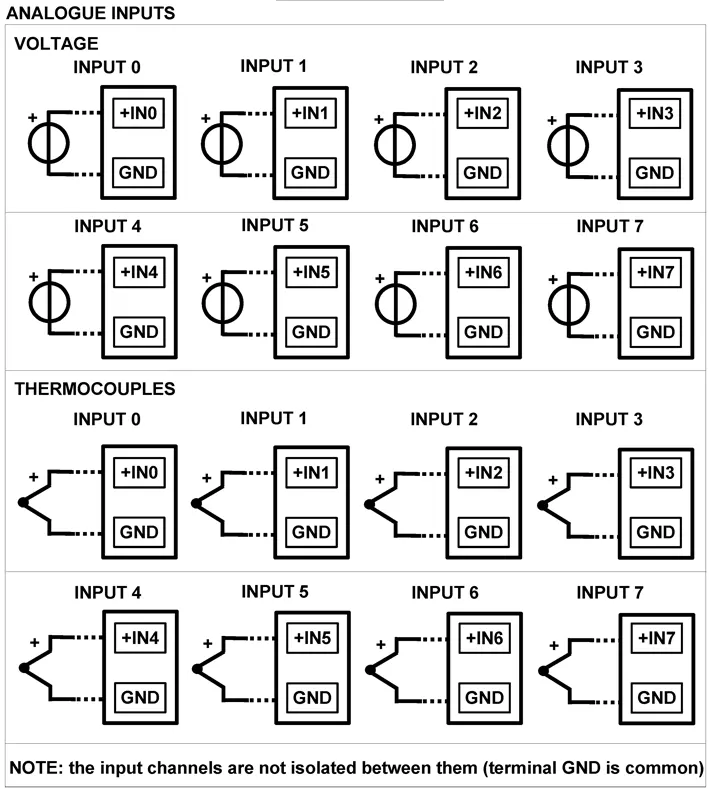

Analog Inputs.

mV Input 0 Positive +IN0 Negative GND
mV Input 1 Positive +IN1 Negative GND
mV Input 2 Positive +IN2 Negative GND
mV Input 3 Positive +IN3 Negative GND
mV Input 4 Positive +IN4 Negative GND
mV Input 5 Positive +IN5 Negative GND
mV Input 6 Positive +IN6 Negative GND
mV Input 7 Positive +IN7 Negative GND
Thermocouple Input 0 Positive +IN0 Negative GND
Thermocouple Input 1 Positive +IN1 Negative GND
Thermocouple Input 2 Positive +IN2 Negative GND
Thermocouple Input 3 Positive +IN3 Negative GND
Thermocouple Input 4 Positive +IN4 Negative GND
Thermocouple Input 5 Positive +IN5 Negative GND
Thermocouple Input 6 Positive +IN6 Negative GND
Thermocouple Input 7 Positive +IN7 Negative GND
8 Channel Thermocouple to Modbus RTU DAT10018.


Power Supply and INIT

Power Supply (18-30Vdc). Positive V+ Negative V-.
RS 485 Slave Positive (D+)B Negative (D-) A GND C
Init Pin Init Ref
8 Channel Thermocouple to Modbus RTU DAT10018.

Applications

Frequently Asked Questions about DAT10018

What is the DAT10018?
The DAT10018 is an 8-channel Modbus RTU/ASCII input module designed for thermocouple and millivolt signals, converting them into Modbus data for PLCs, SCADA, and other Modbus masters.
How many channels does it provide?
The DAT10018 provides 8 independent input channels, making it ideal for applications requiring multiple thermocouple or mV measurement points.
Which thermocouple types are supported?
It supports K, J, R, S, B, E, T, and N type thermocouples.
What millivolt ranges does it accept?
The DAT10018 accepts ±50 mV, ±100 mV, and ±250 mV input ranges.
Does it provide isolation?
Yes. The device provides 1500 Vac galvanic isolation between inputs, communication, and power supply.
Does it have power protection?
Yes. The power supply input includes reverse polarity protection to prevent damage from wiring errors.
