The DAT7130 accept inputs from up to 8 digital inputs and is able to drive 4 relay outputs. The analog signal is converted to 16 Bit data and Transmitter by the CANopen protocol.
The DAT7130 is compliant with CiA DS 301 and CiA DS 401 and can interface directly with the CAN Controllers that accepts CiA DS 301 and CiA DS 401Standards.
The Baud rate and the ID can be programmed by DIP switches positioned on the side of the enclosure. The Enclosure is DIN rail mounted and is 22.5 mm thick. The terminals are plug in so the device can be hot swapped. The DAT7130 is isolated up to 2000 Vac for 1 minute between the Input, CANopen network and the power supply.

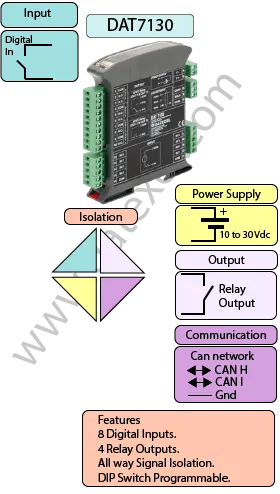

INPUT | OUTPUT | POWER SUPPLY |
---|---|---|
8 Digital Inputs. | CANopen. | Power Supply Voltage 10-30Vdc |
4 Relays 2 SPDT | Reverse polarity protection 60Vdc | |
CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
Between 60 and 115 mA | DIP Switch Programmable | Between Input/Comms/Power Supply 2000Vac. |
EMC | HOUSING | TEMPERATURE |
For Industrial environments | Material self-extinguishing | Operating Temperature -4°F +140°F -20°C +60°C |
Immunity EN 61000-6-2 | Dimensions W x H x T 3 1/2" x 4 1/2" x 7/8" | Storage Temperature -40°F +185°F-40°C +85°C |
Emission EN 6100-6-4 | 90 x 112 x 22.5 mm | Humidity (non condensing) 0-90% |
Weight 3 oz 90 g |
Input: | 8 Channels |
Off State | Below 3 Vdc |
On State | Between 10 and 30Vdc |
Output | 4 Channels |
Relay 0 and 1 | SPDT |
Relay 2 and 3 | SPST |
Power Supply: | 18 to 30 Vdc. Reverse polarity protection 60 Vdc. |
Current Consumption: | Current output 35 mA max. Voltage output 25 mA max. |
Temperature rating: | Operative -4°F +158°F -20°C +70°C |
Temperature Storage Temperature -40°F +185°F -40°C +85°C. | |
Humidity: | (non condensing) 0-90%. |
Housing: | Material self-extinguishing. |
Dimensions: | 4" x 4 1/2 " x 1", 100 x 120x x 22.5 mm. |
Weight: | 3 oz 90 g. |
EMC. | For industrial environments. |
Immunity: EN 61000-6-2. | |
Emission: EN 61000-6-4. | |
Configuration: | PC Configurable and DIP Switch Configurable |

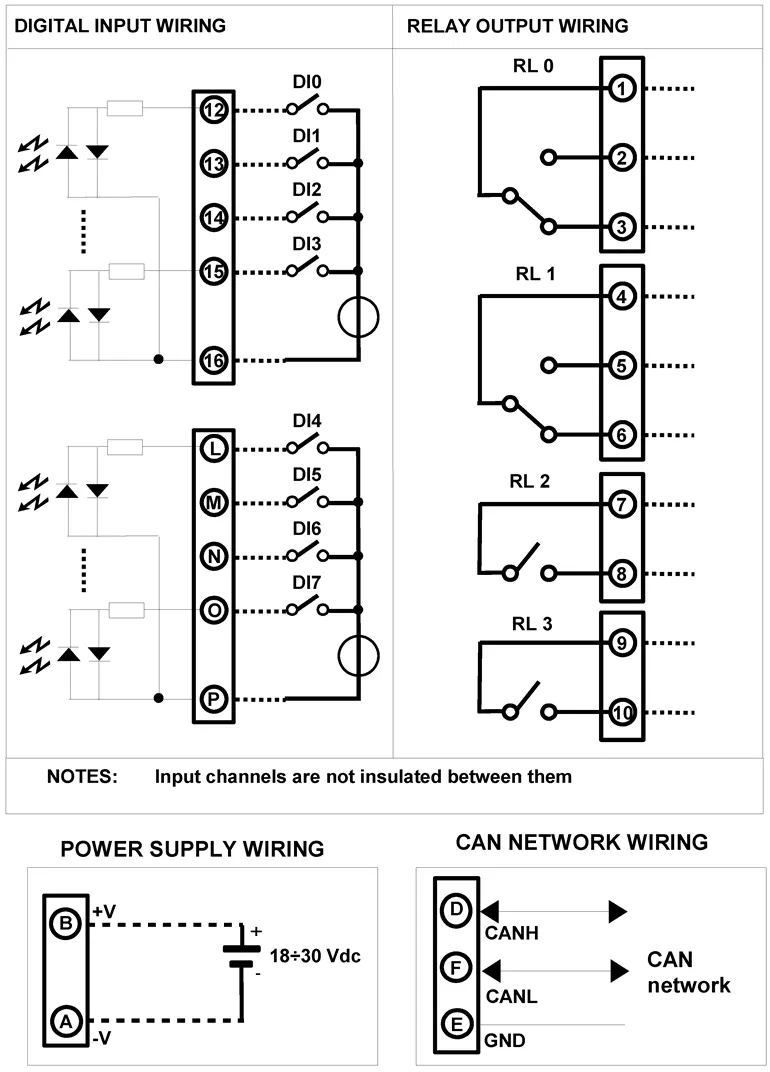

Input | |
D 0 | Terminal 16 and 12 |
D 1 | Terminal 16 and 13 |
D 2 | Terminal 16 and 14 |
D 3 | Terminal 16 and 15 |
D 4 | Terminal L and P |
D 5 | Terminal M and P |
D 6 | Terminal N and P |
D 7 | Terminal O and P |
Output | |
Relay 0 | Common 1 Normally open 2 Normally closed 3 |
Relay 1 | Common 4 Normally open 5 Normally closed 6 |
Relay 2 | Common 7 Normally open 8 |
Relay 3 | Common 9 Normally open 10 |
CAN Network | Terminal D and F Ground E |
Power Supply | Positive B Negative A |
