CANopen Slave Device RTD, Resistance and Potentiometer
DAT7014

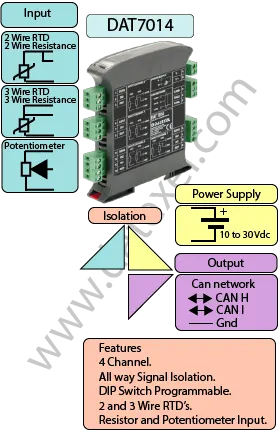

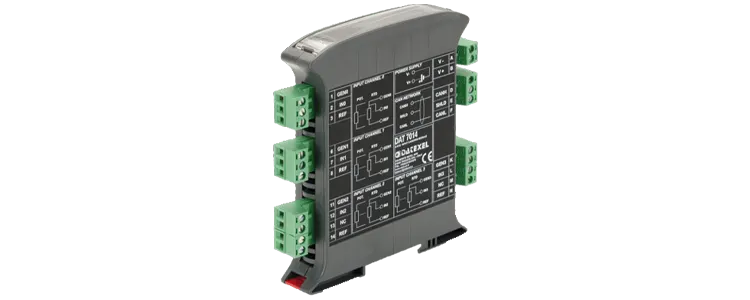

The DAT7014 accept inputs from RTD's, Resistors and Potentiometers. The analog signal is converted to 16 Bit data and Transmitter by the CANopen protocol.
The DAT7014 is compliant with CiA DS 301 and CiA DS 401 and can interface directly with the CAN Controllers that accept CiA DS 301 and CiA DS 401 Standards.
The Baud rate and the ID can be programmed by DIP switches positioned on the side of the enclosure. The Enclosure is DIN rail mounted and is 22.5 mm thick. The terminals are plug in so the device can be hot swapped. The DAT7014 is isolated up to 2000 Vac for 1 minute between the Input, CANopen network and the power supply..
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 4 x RTD, Potentiometers, Resistance. | CANopen. | Power Supply Voltage 10-30Vdc |
| Reverse polarity protection 60Vdc | ||
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 60 and 115 mA | PC Programmable | Between Input/Comms/Power Supply 2000Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature -4°F +140°F -20°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 3 1/2" x 4 1/2" x 7/8" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 90 x 112 x 22.5 mm | Humidity (non condensing) 0-90% |
| Weight 3 oz 90 g |
| Input: | RTD’s Pt100, Pt1000, Ni100, Ni1000. Resistance, Potentiometer. See Data sheet for range. |
| Output: | CANopen |
| Power Supply: | 10 to 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | Current output 35 mA max. Voltage output 25 mA max. |
| Temperature rating: | Operative -4°F +158°F -20°C +70°C |
| Temperature Storage Temperature -40°F +185°F -40°C +85°C. | |
| Humidity: | (non condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | 4" x 4 1/2 " x 1", 100 x 120x x 22.5 mm. |
| Weight: | 3 oz 90 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. | |
| Configuration: | PC Configurable and DIP Switch Configurable |

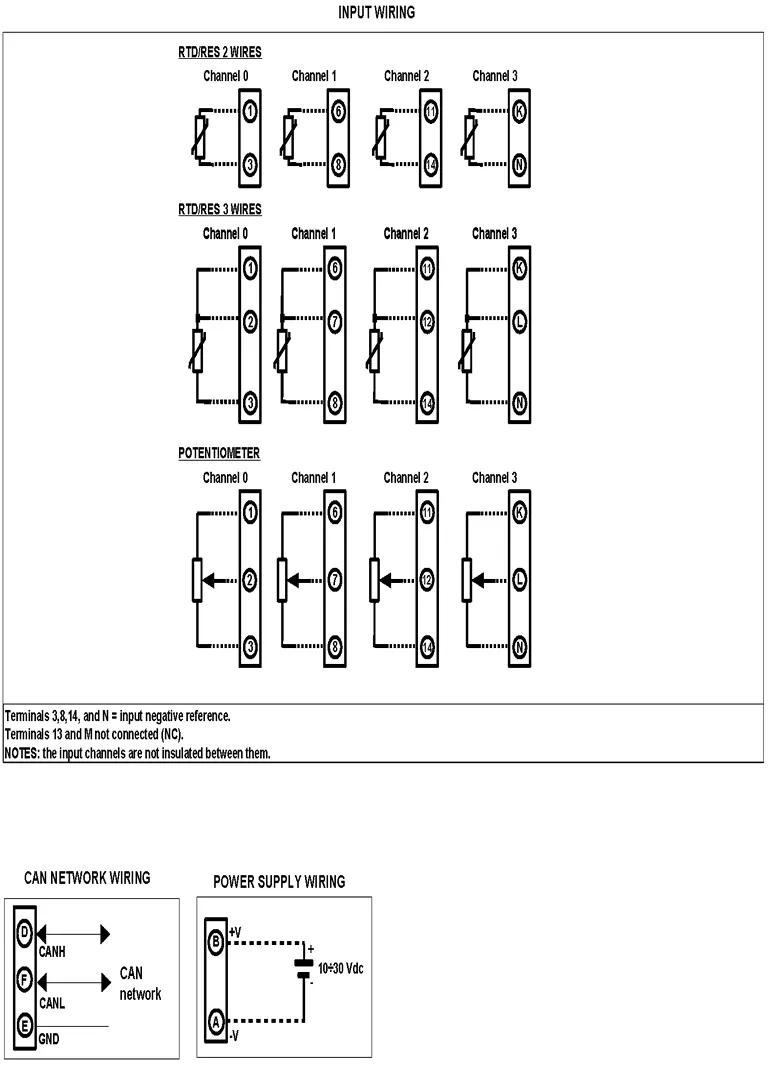

| Input | |
| RTD, Resistance 2 wires | |
| Channel 0 | Terminal 1 and 3 |
| Channel 1 | Terminal 6 and 8 |
| Channel 2 | Terminal 11 and 14 |
| Channel 3 | Terminal K and N |
| RTD, Resistance 3 wires | |
| Channel 0 | Terminal 1 and 3 Short 2 and 1 |
| Channel 1 | Terminal 6 and 8 Short 6 and 7 |
| Channel 2 | Terminal 11 and 14 Short 11 and 12 |
| Channel 3 | Terminal K and N Short L and K |
| Potentiometer | |
| Channel 0 | Terminal 1 and 3 Wiper 2 |
| Channel 1 | Terminal 6 and 8 Wiper 7 |
| Channel 2 | Terminal 11 and 14 Wiper 12 |
| Channel 3 | Terminal K and N Wiper L |
| CAN Network | Terminal D and F Ground E |
| Power Supply | Positive B Negative A |
