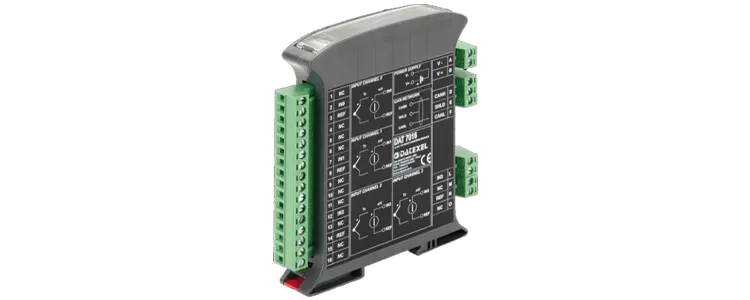

CANopen CAN bus Slave Device Thermocouple and mV input.
DAT7016

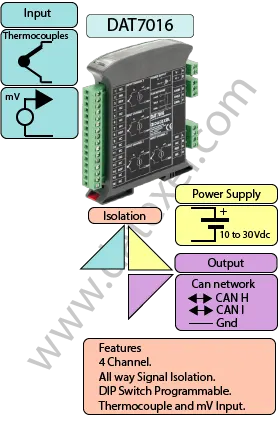

The DAT7016 accepts inputs from up to four thermocouples or millivolt (mV) signals. It supports all standard thermocouple types, converting the analog inputs into 16-bit digital data and transmitting them over the CANopen (CAN bus) protocol for accurate and reliable communication.
Fully compliant with CiA DS 301 and CiA DS 401, the DAT7016 can interface directly with CAN controllers and devices that support these standards, ensuring seamless interoperability in distributed automation systems.
Both the baud rate and node ID are easily configured using DIP switches located on the side of the compact 22.5 mm DIN rail mountable enclosure. For convenience, the plug-in terminals allow the device to be hot swapped without rewiring. To guarantee safe and stable operation, the DAT7016 provides galvanic isolation up to 2000 Vac for 1 minute between the inputs, the CANopen network, and the power supply.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 4 x Thermocouples and mV. | CANopen. | Power Supply Voltage 10-30Vdc |
| Reverse polarity protection 60Vdc | ||
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 60 and 115 mA | PC Programmable | Between Input/Comms/Power Supply 2000Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature -4°F +140°F -20°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 3 1/2" x 4 1/2" x 7/8" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 90 x 112 x 22.5 mm | Humidity (non condensing) 0-90% |
| Weight 3 oz 90 g |
| Input: | Thermocouple Type J, K, S, R, B, E, T, N and mV. |
| Output: | CANopen |
| Power Supply: | 10 to 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | Current output 35 mA max. Voltage output 25 mA max. |
| Temperature rating: | Operative -4°F +158°F -20°C +70°C |
| Temperature Storage Temperature -40°F +185°F -40°C +85°C. | |
| Humidity: | (non condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | 4" x 4 1/2 " x 1", 100 x 120x x 22.5 mm. |
| Weight: | 3 oz 90 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. | |
| Configuration: | PC Configurable and DIP Switch Configurable |

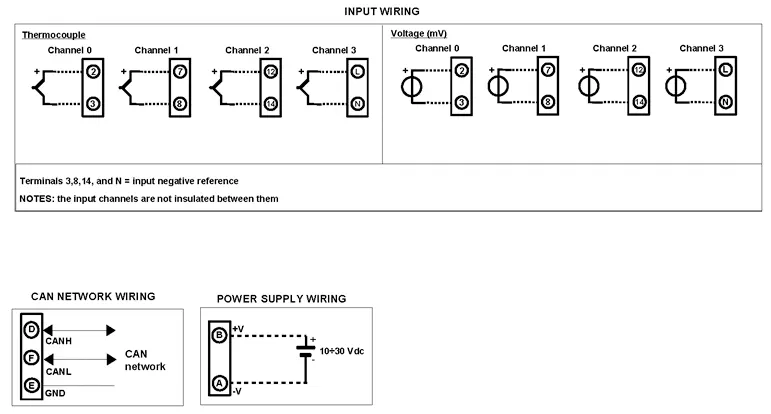

| Input | |
| Thermocouple | |
| Channel 0 | Terminal 2 and 3 |
| Channel 1 | Terminal 7 and 8 |
| Channel 2 | Terminal 12 and 14 |
| Channel 3 | Terminal L and N |
| Current mA | |
| Channel 0 | Terminal 2 and 3 |
| Channel 1 | Terminal 7 and 8 |
| Channel 2 | Terminal 12 and 14 |
| Channel 3 | Terminal L and N |
| CAN Network | Terminal D and F Ground E |
| Power Supply | Positive B Negative A |
