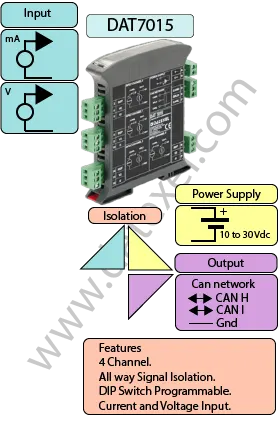

CANopen Slave Device Voltage and Current.
DAT7015
The DAT7015 accepts both voltage and current inputs. Input ranges include ±10 V for voltage and ±20 mA for current signals. The analog values are converted into 16-bit digital data and transmitted via the CANopen (CAN bus) protocol for seamless integration into distributed control systems.
The DAT7015 is fully compliant with CiA DS 301 and CiA DS 401, allowing it to interface directly with CAN controllers and devices that follow these standards. This ensures reliable interoperability in industrial automation networks.
Configuration is simple: both the baud rate and node ID can be set using DIP switches on the side of the enclosure. The compact 22.5 mm DIN rail mounted housing includes plug-in terminals for quick wiring and hot swapping. For robust operation, the DAT7015 provides galvanic isolation up to 2000 Vac for 1 minute between inputs, the CANopen network, and the power supply.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 4 x 4-20mA, 0-20mA, 0-10V +/-10V, +/-20mA.. | CANopen. | Power Supply Voltage 10-30Vdc |
| Reverse polarity protection 60Vdc | ||
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 60 and 115 mA | PC Programmable | Between Input/Comms/Power Supply 2000Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature -4°F +140°F -20°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 3 1/2" x 4 1/2" x 7/8 | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 90 x 112 x 22.5 mm | Humidity (non condensing) 0-90% |
| Weight 3 oz 90 g |
| Input: | Voltage -10V to +10V,0-10V. Current -20mA to +20mA, 4-20mA. |
| Output: | CANopen |
| Power Supply: | 10 to 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | Current output 35 mA max. Voltage output 25 mA max. |
| Temperature rating: | Operative -4°F +158°F -20°C +70°C |
| Temperature Storage Temperature -40°F +185°F -40°C +85°C. | |
| Humidity: | (non condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | 4" x 4 1/2 " x 1", 100 x 120x x 22.5 mm. |
| Weight: | 3 oz 90 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. | |
| Configuration: | PC Configurable and DIP Switch Configurable |

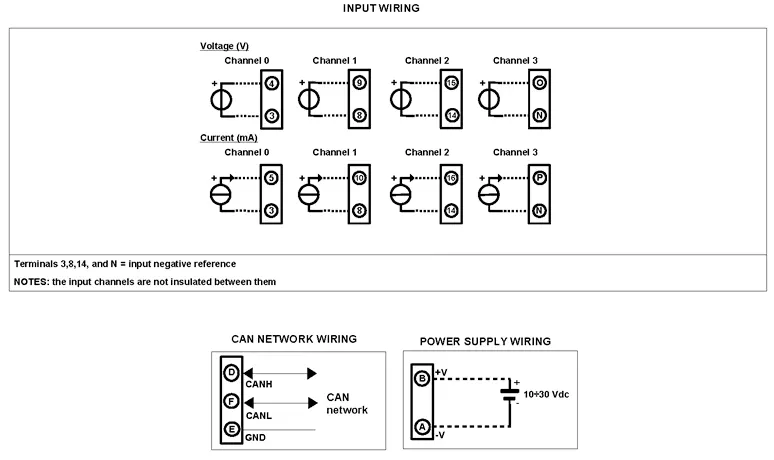

| Input | |
| Voltage | |
| Channel 0 | Terminal 4 and 3 |
| Channel 1 | Terminal 9 and 8 |
| Channel 2 | Terminal 15 and 14 |
| Channel 3 | Terminal O and N |
| Current mA | |
| Channel 0 | Terminal 5 and 3 |
| Channel 1 | Terminal 10 and 8 |
| Channel 2 | Terminal 16 and 14 |
| Channel 3 | Terminal P and N |
| CAN Network | Terminal D and F Ground E |
| Power Supply | Positive B Negative A |
