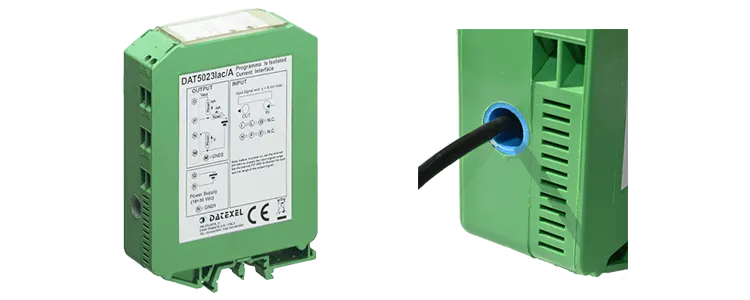

The DC transducer DAT5023Idc B is designed to convert 0-20Amp, 0-25Amp, 0-30Amp into a current or Voltage signal. The output signal is selectable from a 4-20mA, 0-20mA, 0-10V, 2-10V, 0-5 or 1-5V. The current carrying cable is feed through the Current Transformer.
The user can program the input and output ranges by the DIP-switches located on the side of the device.
The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of the device.
The DAT5023Idc provides on the output side an auxiliary supply source to connect both active and passive loads.
The device is available in other input ranges.DAT5023 I dc version A 0-5Amp, 0-10Amp.
DAT5023 I dc version C 0-40Amp, 0-50Amp, 0-60Amp.The DAT5023Idc is accurate to 0.1% full scale and has less than 0.01%/°f thermal drift.

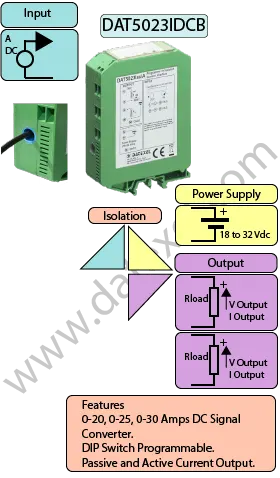

The 2000 Vac isolation between Input, power supply and output eliminates the effects of all ground loops and allows the use of the transducer in heavy environmental conditions found in industrial applications.
The DAT5023Idc provides a power supply on the output side so both active and passive loads can be connected.
The DAT5023Idc is in compliance with the standard 89/336/CEE on the Electromagnetic Compatibility.
The DAT5023Idc is housed in a plastic enclosure of 27.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.
| INPUT |
OUTPUT |
POWER SUPPLY |
| DC Current 0-20 Amp, 0-25 Amp, 0-30 Amp. |
Current 4-20mA, 0-20mA. |
Power Supply Voltage 18-30Vdc |
| Other ranges available to order |
Voltage 0-10V, 0-5V, 2-10V, 1-5V. |
Reverse polarity protection 60Vdc |
| CURRENT CONSUMPTION |
CONFIGURATION |
ISOLATION |
| Between 50 and 80 mA |
DIP Switches Programmable |
Between Input/Comms/Power Supply 2000Vac. |
| EMC |
HOUSING |
TEMPERATURE |
| For Industrial environments |
Material self-extinguishing |
Operating Temperature -4°F +140°F -20°C +60°C |
| Immunity EN 61000-6-2 |
Dimensions W x H x T
3 1/2" x 4 1/2" x 1 1/8" |
Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 |
90 x 112x x 27.5 mm |
Humidity (non condensing) 0-90% |
|
Weight 6 oz 170 g |
|
