Frequency converter.

DAT4540T

Datexel Product Range
Buy Online

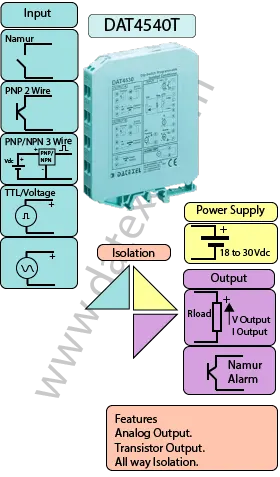

Frequency converter DAT4540T.
• converts Frequency up to 20 KHz
• Namur, TTL, PNP Tachometer Input.
• Transistor Output
• Current and Voltage Output
• DIP Switch Configurable
• PC Programmable
• DIN Rail Mounted
General Description

The DAT4540T Frequency Converter is a high-performance signal conditioning module designed to convert frequency-based signals into a proportional analog output. Housed in a compact DIN rail mount enclosure, the DAT4540T accepts frequency inputs from a wide variety of digital sources including tachometers, TTL logic signals, PNP transistor outputs, and NAMUR proximity sensors.

The device can accurately process input signals over a wide range from 0.1 Hz to 20 kHz. Based on the configured range, the DAT4540T converts the frequency into an isolated analog output, selectable as either voltage (e.g., 0-10 V) or current (e.g., 4-20 mA), making it ideal for interfacing frequency sensors with PLCs, SCADA systems, or analog input devices.

In addition to the analog output, the DAT4540T is equipped with a fast-switching isolated transistor output. This output can be configured for multiple functions such as frequency threshold alarms, signal replication, or pulse shaping applications,  enhancing flexibility for monitoring and control tasks.

The DAT4540T provides galvanic isolation between the input, analog output, transistor output, and power supply, ensuring safe and reliable operation even in demanding industrial environments. This isolation eliminates ground loops and interference, preserving signal integrity and protecting downstream equipment.

Configuration of input type, frequency range, and output signal is easily done via DIP switches accessible through a side panel window. For more advanced settings, the device can be fully programmed via PC software to meet specific application requirements.

Compact and versatile, the DAT4540T is an ideal solution for applications such as speed monitoring, flow measurement, rotating equipment diagnostics, and frequency-to-analog signal conversion in industrial automation.

INPUT OUTPUT POWER SUPPLY
Namur, TTL, PNP, Tacho, Volts. Current 4-20mA, 0-20mA. Power Supply Voltage 14-30Vdc
Voltage 0-10V Min Span 1 V. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 60 and 115 mA PC Programmable 3 Way 1500Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +140°F -20°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2 " x 1/2" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g

Specifications

Input: Tacho, Voltage, TTL, Namur, PNP. See Data sheet for range.
Output: Current 4-20mA, 0-20mA Min span 4mA. Voltage 0-10V Min Span 1 V.
Output Digital: Transistor output Max load 30 Vdc, 100mA.
Power Supply: 20 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 90 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

Signal Inputs

Voltage and Current Input

Input. Namur G and L
  PNP G and L
  TTL/Volt L and I
  Tacho H and I
Signal Output.
Voltage. Positive O Negative P
Current. Active Positive M Negative N
  Passive Positive N Negative P
Transistor Output. Positive F Negative E
Power Supply (18-30Vdc). Positive Q Negative R.
Frequency converter DAT4540T wiring Diagram.
Applications

Frequently Asked Questions about DAT4540T

What types of input signals does the DAT4540T accept?
The DAT4540T accepts digital frequency inputs from tachometers, TTL logic signals, PNP transistor outputs, and NAMUR standard sensors.
What is the frequency input range of the DAT4540T?
The DAT4540T supports frequency signals from 0.1 Hz up to 20 kHz, with selectable range settings depending on the application.
What kind of analog output does the DAT4540T provide?
The device offers an isolated analog output, which can be configured as either voltage (e.g., 0-10 V) or current (e.g., 4-20 mA) proportional to the input frequency.
What is the purpose of the transistor output?
The isolated transistor output can be used for alarm signaling based on frequency thresholds, or for replicating/shaping the incoming pulse signal.
Is the DAT4540T galvanically isolated?
Yes, it features complete galvanic isolation between the input, analog output, transistor output, and power supply to eliminate ground loops and ensure signal integrity.
How is the DAT4540T configured?
The device can be configured via DIP switches on the side of the enclosure or fully programmed via PC using dedicated software for advanced settings.
Where is the DAT4540T typically used?
The DAT4540T is ideal for applications such as motor speed monitoring, turbine or fan rotation tracking, flowmeter pulse counting, and general frequency-to-analog conversion in industrial environments.
