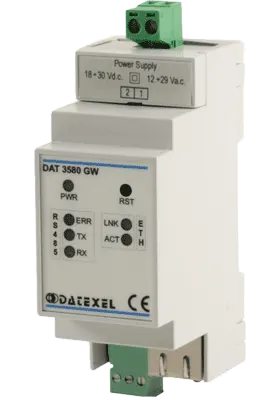

Isolated Ethernet Gateway
DAT3580GW
The DAT3580GW Isolated Ethernet Gateway allows Modbus RTU RS-485 serial devices to communicate with Modbus TCP Ethernet networks. It provides seamless protocol conversion, enabling integration between legacy Modbus RTU field devices and modern Ethernet-based control systems.
The DAT3580GW includes an integrated web server, which allows easy configuration of the Modbus TCP IP address, subnet mask, and RTU device parameters. The gateway supports simultaneous connections of up to 8 Modbus TCP clients, ensuring flexibility in distributed control architectures.
Commands received over Ethernet are processed by the gateway and retransmitted to the connected Modbus RTU devices. Responses from the RTU devices are then returned to the originating Ethernet client. With support for RS-485 communication up to 115.2 kbps and distances up to 1200 m, the DAT3580GW can connect up to 32 Modbus devices on a multipoint network.
Additional features include RJ45 Ethernet interface, removable screw-terminal connections, LED indicators for Ethernet link/activity and power, and galvanic isolation on all ports. The device is EMC compliant (CE mark) and designed for EN-50022 DIN rail mounting.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 0-10 VdModbus RTU | Modbus TCP Ethernet 10/100T | Power Supply Voltage 18-30Vdc |
| RS485 | Reverse polarity protection 60Vdc | |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 60 and 115 mA | PC Programmable | Between Input/Comms/Power Supply 1500Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature 14°F +140°F -10°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 106 x 112x x 57 mm | Humidity (non condensing) 0-90% |
| Weight 7 oz 200 g |
| Network interface | Ethernet 10/100Base-T |
| Protocol | Modbus TCP |
| Connection | RJ-45 |
| 38400bps | 1,2 Km |
| 19200bps | 2 Km |
| 9600bps | 3 Km |
| 4800bps | 4 Km |
| 2400bps | 5 Km |
| 1200bps | 7 Km |
| Number of Modules | Up to 32 |
| Switching time | 150us |
| DC Power Supply | 18 to 30Vdc |
| AC Power Supply | 12 to 30VAc |
| Isolation | 1500 Vac Power Supply / Ethernet |
| 1500 Vac Power Supply / RS485-422 | |
| 1500 Vac Ethernet / RS485-422 | |
| Temperature rating: | Operative -4°F +145°F -20°C +60°C |
| Temperature Storage Temperature -40°F +170°F -40°C +85°C. | |
| Humidity: | (non condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | W 4 1/3 L 1 1/2 H 2 1/3" 111 mm X 58 mm x 36mm |
| Weight: | 7 oz 160 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. |
| Power Supply | |
| DC Power | Positive 1 Negative 2 |
| AC Power | 1 and 2 |
| RS485 | |
| Point to Point | Shield to Shield |
| Positive to D (+) | |
| Negative to D (-) | |
| Multi Point | Shield to Shield |
| Positive to D (+) | |
| Negative to D (-) |
