Modbus 16 Digital Output device
DAT3116

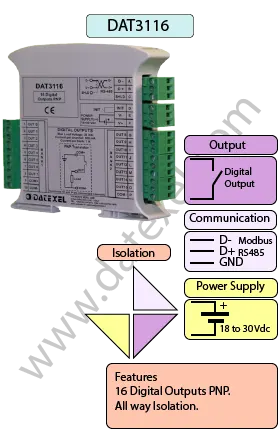

The DAT3116 Modbus Digital Output Module provides 16 PNP transistor outputs, which can be controlled via Modbus RTU or Modbus ASCII over RS-485. It is designed for industrial automation applications requiring multiple digital outputs driven directly from a Modbus network.
Each channel can source up to 500 mA, with a maximum of 1 A per bank. Front panel LEDs provide clear indication of each output status, as well as power, transmit, and receive activity for easy diagnostics.
The DAT3116 features galvanic isolation between Modbus communication, power supply, and outputs, ensuring safe and reliable operation. Additional safety features include a watchdog function and a short-circuit alarm.
Configuration is carried out using the free DAT3000–DAT10000 configuration software, available from the Datexel download page.

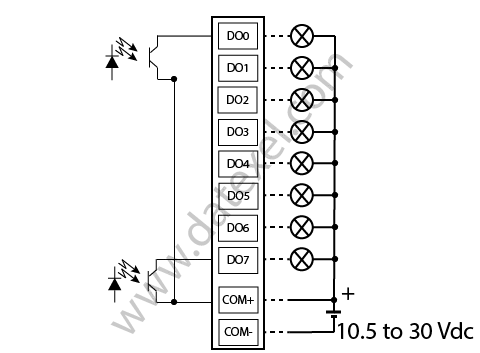

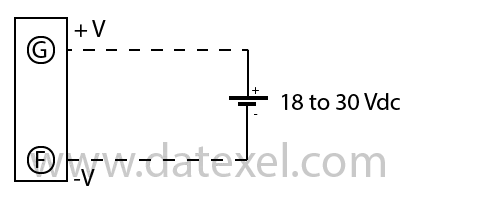

| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| Modbus RTU | 16 Digital Outputs | Power Supply Voltage 18-30Vdc |
| Modbus ASCII | Reverse polarity protection 60Vdc | |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 20 and 70 mA | PC Programmable | Between Input/Comms/Power Supply 1500Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature 14°F +140°F -10°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 4" x 4 3/4" x 3/4" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 100 x 120 x 22.5 mm | Humidity (non condensing) 0-90% |
| Weight 6 oz 170 g |
| Output: | 16 Digital Outputs, PNP. |
| Voltage | 10.5 to 30 V dc. |
| Maximum Load | 500 mA per Channel or 1 Amp per bank. |
| Communication: | RS485 Modbus RTU ASCII. |
| Power Supply: | 18 - 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | 20 to 70 mA. |
| Temperature rating: | Operative Temperature -14°F +140°F -10°C +60°C Storage Temperature -40°F +185°F -40°C +85°C. |
| Humidity: | (not condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | W x L x H 3 3/4X 3 1/2 X 1 7/8 inch, 90 x 74 x 48mm. |
| Weight: | 6" 200 g. |
| EMC. | For industrial environments. |
| Immunity: | EN 61000-6-2. |
| Emission: | EN 61000-6-4. |
| Isolation: | Between Modbus Master, Slave/Power supply 1500Vac, 50Hz, 1 Minute. |
| Configuration: | PC Configurable. |
| Default Comms Settings | |
| Address | 1 |
| Baud-rate | 38400 bps |
| Protocol | RTU |
| Common Positive | Com+ | Terminal 9 |
| Common Negative | Com- | Terminal 10 |
| Channel 0 | DO0 | Terminal 1 |
| Channel 1 | DO1 | Terminal 2 |
| Channel 2 | DO2 | Terminal 3 |
| Channel 3 | DO3 | Terminal 4 |
| Channel 4 | DO4 | Terminal 5 |
| Channel 5 | DO5 | Terminal 6 |
| Channel 6 | DO6 | Terminal 7 |
| Channel 7 | DO7 | Terminal 8 |
| Channel 8 | DO8 | Terminal G |
| Channel 9 | DO9 | Terminal H |
| Channel 10 | DO10 | Terminal I |
| Channel 11 | DO11 | Terminal J |
| Channel 12 | DO12 | Terminal L |
| Channel 13 | DO13 | Terminal M |
| Channel 14 | DO14 | Terminal N |
| Channel 15 | DO15 | Terminal O |
| Common Negative | Com- | Terminal P |
| Positive | +V | Terminal G |
| Negative | -V | Terminal F |
| Positive | D+ | Terminal B |
| Negative | D- | Terminal A |
| Ground | GND | Terminal C |
| INIT | Terminal G |
| Ground | Terminal F |
| Baud Rate | 9600 bps |
| Parity | None |
| # of bits | 8 |
| Stop bits | 1 |
| Address | 1 |
