ModBus TCP Ethernet with 8 Digital inputs and 4 relay outputs

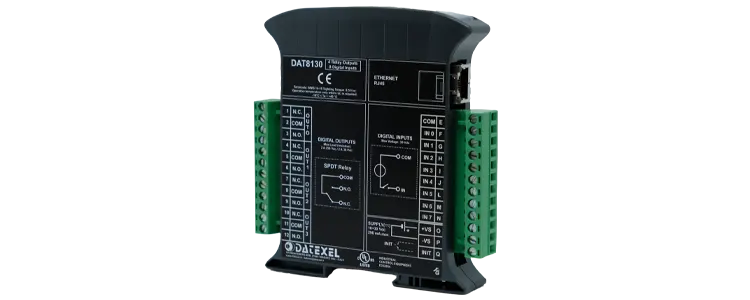

DAT8130
The DAT8130 Modbus TCP converter using Ethernet Base 10/100T Communication with 8 Digital inputs and 4 Relay Outputs. The on state for the Digital inputs are 10 to 30 V and the off state is below 3 V. The 4 relays are SPDT. The inputs outputs, Ethernet and power supply are isolated from each other up to 1500VAC for 1 minute. The DAT8130 accepts a wide tolerance on it's power supply from 10 to 30 Vdc and it is mounted on DIN Rail.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 8 Digital Input | 4 Relays SPDT | Power Supply Voltage 10-30Vdc |
| Modbus TCP Ethernet 10/100T | Modbus TCP Ethernet 10/100T | Reverse polarity protection 60Vdc |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 60 and 115 mA | PC Programmable | Between Input/Comms/Power Supply 1500Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature 14°F +140°F -10°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 4" x 4 3/4" x 3/4" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 100 x 120x x 22.5 mm | Humidity (non condensing) 0-90% |
| Weight 7 oz 200 g |
| Input: | |
| Digital | On State 10- 30 Vdc and off State below 3 Vdc |
| Output | |
| Relay | 4 Relays SPDT. |
| Communication: | |
| Ethernet 10/100T: | Modbus TCP. |
| Power Supply: | 10 - 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | 60 mA Standby 230 mA Max. |
| Temperature rating: | Operative Temperature -4°F +140°F - 20°C +60°C Storage Temperature - 40°F +185°F - 40°C +85°C. |
| Humidity: | (not condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | W x H x T 4 3/4 x 4 x 7/8 inch, 120 x 100 x 22,5mm. |
| Weight: | 6 oz 160 g. |
| EMC. | For industrial environments. |
| Immunity: | EN 61000-6-2. |
| Emission: | EN 61000-6-4. |
| Isolation: | Input, Each Channel, Power Supply, 1500Vac, 50Hz, 1 Minute. |
| Configuration: | PC Configurable. |
| Power Supply (18-30Vdc). | Positive O Negative P. |
| Init | Pin Q Init Gnd P |

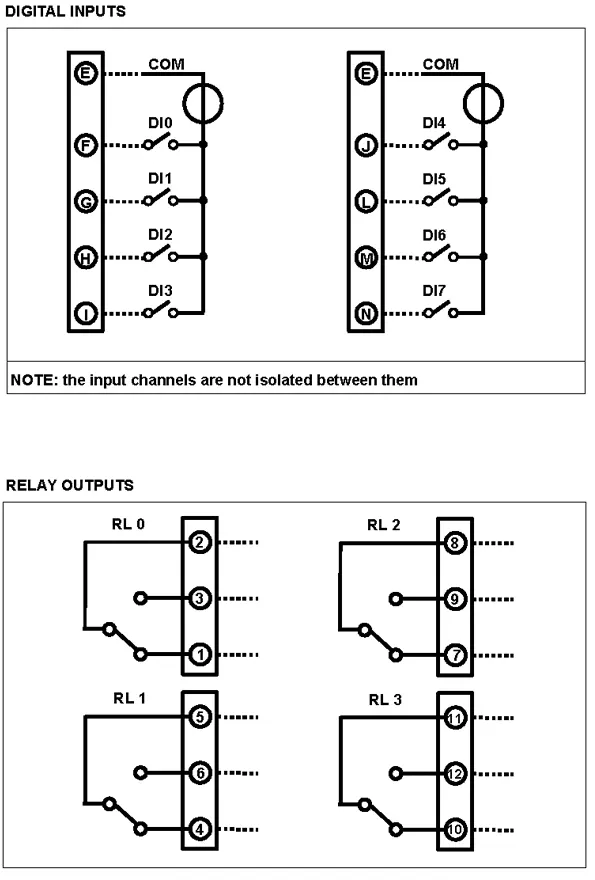

| Digital Inputs | |
| Digital Input 0 | Common E Input DI0 F |
| Digital Input 1 | Common E Input DI1 G |
| Digital Input 2 | Common E Input DI2 H |
| Digital Input 3 | Common E Input DI3 I |
| Digital Input 4 | Common E Input DI4 J |
| Digital Input 5 | Common E Input DI5 L |
| Digital Input 6 | Common E Input DI6 M |
| Digital Input 7 | Common E Input DI7N |
| Relay Outputs | |
| Relay Output 0 | Common 1 Normally open 3 Normally closed 2 |
| Relay Output 1 | Common 4 Normally open 6 Normally closed 5 |
| Relay Output 2 | Common 7 Normally open 9 Normally closed 8 |
| Relay Output 3 | Common 9 Normally open 10 Normally closed 11 |
