Modbus TCP MQTT Gateway
DAT3680IOT

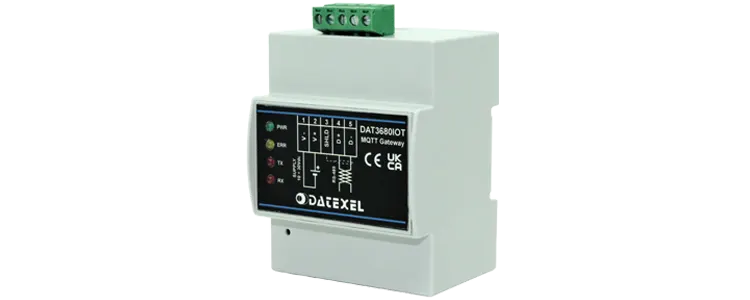

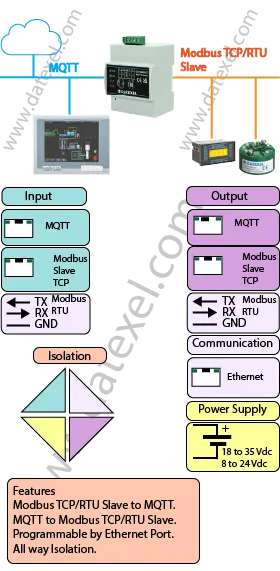

The DAT3680IOT Industrial IoT Gateway is designed to facilitate seamless communication between field devices and cloud-based platforms using Modbus RTU, Modbus TCP, and MQTT with SSL/TLS authentication. Engineered for Industry 4.0 applications, this gateway is compact and DIN rail mountable, making it ideal for installation in industrial control panels.
Equipped with an RS485 serial interface for Modbus RTU master and an Ethernet interface for Modbus TCP master, the DAT3680IOT enables real-time data acquisition from multiple field devices. The collected data is securely transmitted to cloud services via the MQTT protocol, supporting Amazon AWS, IBM Watson IoT, and Mosquitto.
Configuration is simple via an integrated web server, allowing users to define and manage Modbus devices. It also supports a preloaded library of DAT3000, DAT8000, and DAT10000 series devices, with the ability to add custom Modbus RTU or Modbus TCP devices.
Designed for reliability in industrial environments, the DAT3680IOT features galvanic isolation, EMC compliance, and LED indicators for quick diagnostics. A built-in watchdog circuit ensures uninterrupted operation with an automatic reset function. The 10V–30V DC power input is protected against polarity reversal, enhancing device longevity.
With robust connectivity, industrial-grade protection, and flexible cloud integration, the DAT3680IOT is the perfect solution for remote monitoring, industrial automation, and IoT data management.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| Modbus RTU | MQTT | Power Supply Voltage 10-30Vdc |
| Modbus TCP | Reverse polarity protection 40Vdc | |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 300 mA | PC Programmable | Between Input/Comms/Power Supply 1000Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature -4°F +140°F -20°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 2.3/4" x 4" x 3 1/2 " | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 70 x 102 x 90 mm | Humidity (non condensing) 0-90% |
| Weight 7 oz 200 g |
| Network interface | Ethernet 10/100Base-T MQTT |
| Protocol | Modbus RTU/TCP |
| Connection | RJ-45 |
| 38400bps | 1,2 Km |
| 19200bps | 2 Km |
| 9600bps | 3 Km |
| 4800bps | 4 Km |
| 2400bps | 5 Km |
| 1200bps | 7 Km |
| Number of Modules | Up to 32 |
| Switching time | 150us |
| DC Power Supply | 10 to 30Vdc |
| Isolation | 1500 Vac RS485 / Ethernet |
| 1000 Vac Power Supply / Ethernet | |
| 1500 Vac Power Supply / RS485-422 | |
| Temperature rating: | Operative -4°F +145°F -20°C +60°C |
| Temperature Storage Temperature -40°F +170°F -40°C +85°C. | |
| Humidity: | (non condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | W x H x T 2.3/4" x 4" x 3 1/2 " 70 x 102 x 90 mm |
| Weight: | 7 oz 160 g. |
| EMC. | For industrial environments. |
| Immunity: EN 61000-6-2. | |
| Emission: EN 61000-6-4. |

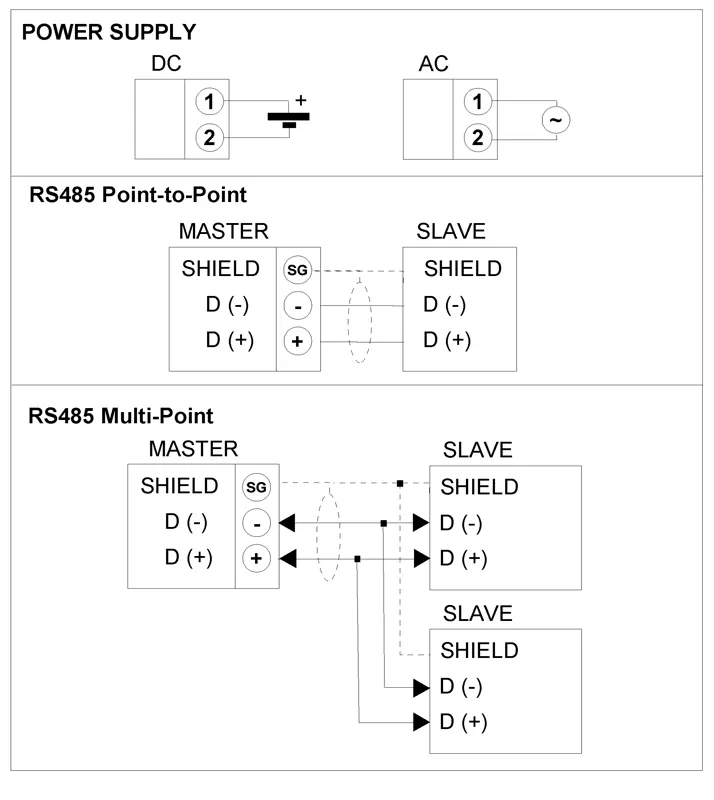

| Power Supply | |
| DC Power | Positive 1 Negative 2 |
| AC Power | 1 and 2 |
| RS485 | |
| Point to Point | Shield to Shield |
| Positive to D (+) | |
| Negative to D (-) | |
| Multi Point | Shield to Shield |
| Positive to D (+) | |
| Negative to D (-) |
