Potentiometer Converter

Key Features

• Configurable Input: Supports RTD, mV, resistance, and potentiometer inputs.
• Voltage or Current Output: Configurable output as voltage or current.
• Separate Power Supply: Operates with a separate power supply for enhanced flexibility.
• Damping Function: Reduces fast variations on the input signal with a programmable filter up to 30 seconds.
• PC Configurable: Easily configured by a personal computer using the CVPROG cable.
• High Accuracy: Ensures reliable and stable performance over time and temperature changes.
• On-field Reconfigurable: Device can be reconfigured on-site.
• Micro-USB Configuration: Configure the device without a power supply via Micro-USB.
• Output Adjustment: Optional potentiometers for manual output signal adjustment (-POT option).
• EMC Compliant: CE marked for electromagnetic compatibility.
• DIN Rail Mounting: Suitable for mounting in compliance with EN-50022 and EN-50035 standards.

Functionality

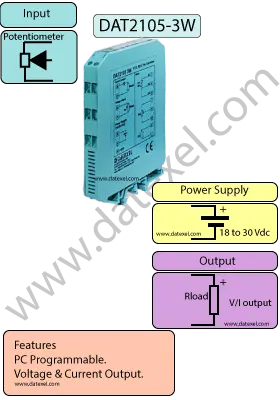

The DAT2105-3W performs several essential functions:

• Measures and linearizes the temperature characteristic of RTD sensors.
• Converts linear resistance variations.
• Converts voltage signals, including those from potentiometers connected to its input.

The measured values are transmitted via the configured output (voltage or current), based on the settings. The device ensures high accuracy and performance stability over time and across temperature variations.

Configuration

Configuration of the DAT2105-3W is straightforward and must be done without powering the device. Use the CVPROG cable to connect to the Micro-USB port on the front side of the transmitter. Configuration is performed using the DATAPRO software, developed by DATEXEL, compatible with Windows™ operating systems.

For resistance and RTD sensors, the device allows for 3-wire cable compensation. Users can set minimum and maximum values for input and output ranges, maintaining the minimum span specified in the datasheet. An alarm option for signal interruption (burn-out) is available, allowing the output value to be set high or low out of scale.

Additional Features

• Damping Function: Programmable filter up to 30 seconds to smooth out fast input signal variations.
• Manual Adjustment: Optional front-side potentiometers for on-field signal adjustment (-POT option).

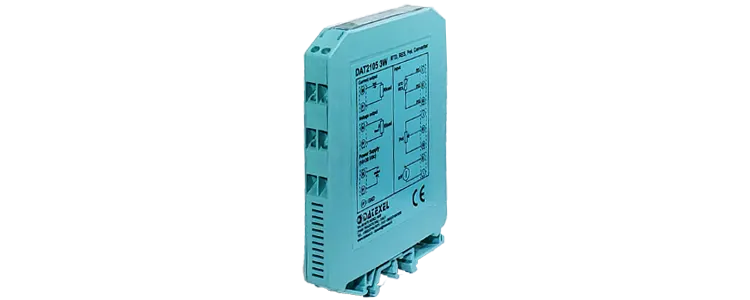

• Compact Design: Housed in a 12.5 mm thick plastic enclosure, suitable for DIN rail mounting per EN-50022 and EN-50035 standards.

User Instructions

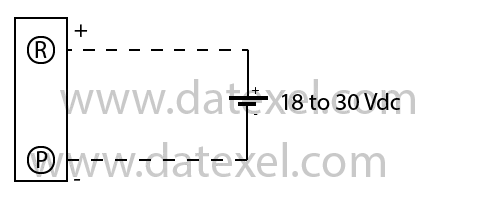

Output Measurement: The configured output signal (voltage or current) can be measured in the power loop, as detailed in the "Output/Power Supply Connection" section.
Input Connections: Ensure proper connections as shown in the "Input Connection" section.
Device Configuration: Refer to the "Configuration" section for detailed instructions.

The DAT2105-3W is an ideal solution for applications requiring reliable conversion of potentiometer signals to a standardized voltage or current output, ensuring precise control and monitoring in industrial environments.
