RS232 to 4-20mA Output.
DAT3022 RS232

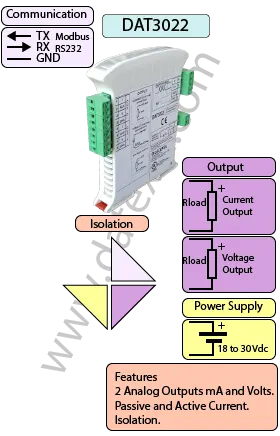

The device DAT3022 generates 2 output analog signals from digital commands. The data are transmitted using the MODBUS RTU/MODBUS ASCII protocol on the RS232 network (RS485 interface is available).
It is possible to generate voltage signals up to 10V and current signals up to 20mA, both in active or passive loops. The device guarantees high accuracy and stable measurements over time and temperature variations. To ensure plant safety, two Watch-Dog timer alarms are provided. The isolation between the parts of the circuit eliminates potential ground-loop effects, allowing the use of the device even in harsh environmental conditions.
The DAT3022 complies with the UL 61010-1 directive for the US market and the CSA C22.2 No 61010-1 directive for the Canadian market. The device is housed in a rugged, self-extinguishing plastic container with a thin profile of only 17.5mm, allowing high-density mounting on an EN-50022 standard DIN rail.
The DAT3022 is designed to work with the MODBUS RTU/MODBUS ASCII protocol, a standard protocol in field-bus systems. This allows direct interfacing of DAT3000 series devices with most PLCs and SCADA applications available on the market. For protocol instructions, refer to the User Guide of the device.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| Modbus RS232 | 4-20 MA | Power Supply Voltage 18-30Vdc |
| 0-10 Volts | Reverse polarity protection 60Vdc | |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 30 and 100 mA | PC Programmable | Between Input/Comms/Power Supply 2000Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature 14°F +140°F -10°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 4" x 4 3/4" x 3/4" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 100 x 120 x 22.5 mm | Humidity (non condensing) 0-90% |
| Weight 3 oz 90 g |
| Output: | 2 Channels |
| mA | 0-20mA , 4-20mA. |
| Voltage | 0-10Volt |
| Communication: | |
| RS232 | RS232 |
| Power Supply: | 18 - 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | 30 mA. |
| Temperature rating: | Operative Temperature -4°F +140°F -20°C +60°C Storage Temperature -40°F +185°F -40°C +85°C. |
| Humidity: | (not condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | W x L x H 3 3/4X 3 1/2 X 1 7/8 inch, 90 x 74 x 48mm. |
| Weight: | 7 oz 200 g. |
| EMC. | For industrial environments. |
| Immunity: | EN 61000-6-2. |
| Emission: | EN 61000-6-4. |
| Isolation: | Between Modbus Master, Slave/Power supply 1500Vac, 50Hz, 1 Minute. |
| Configuration: | PC Configurable. |
| Output | |
| Passive | |
| Current Output 0 | Positive 1 Negative 4 |
| Current Output 1 | Positive 5 Negative 8 |
| Active | |
| Current Output 0 | Positive 1 Negative 2 |
| Current Output 1 | Positive 5 Negative 6 |
| Voltage Output 0 | Positive 3 Negative 4 |
| Voltage Output 1 | Positive 7 Negative 8 |
| Power Supply (18-30Vdc). | Positive J Negative I. |
| RS 485 Slave | Positive (D+)B Negative (D-) A GND C |
| RS-232D | C GND |
| E RX | |
| F TX | |
| Init | Pin D Init Gnd C |
